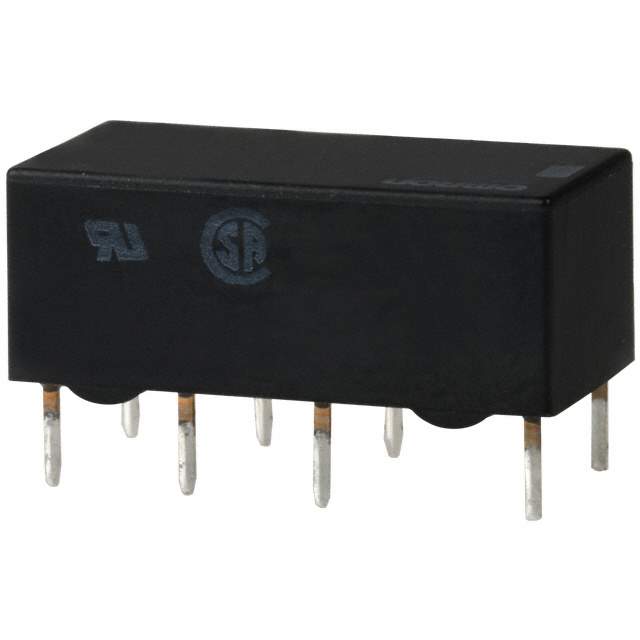

G6A-274P-ST-US-DC5 Real Image
Same model may have multiple batches, images only for reference.

G6A-274P-ST-US-DC5

Part No G6A-274P-ST-US-DC5
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 5VDC 27Ohm 2A DPDT THT Military Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL
Mounting SMD (SMT)
Case / Package DIP
Coil Current 40 mA
Coil Power 200 mW
Coil Resistance 125 Ω
Coil Type Non-Latching
Coil Voltage (DC) 5 V
Contact Current Rating 2 A
Contact Material Silver
Current Rating 2 A
Depth 10.1 mm
Height 8.4 mm
Length 20.2 mm
Max Current Rating 2 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 220 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Pins 8
Operate Time 5 ms
Power Consumption 200 mW
Power Rating 200 mW
Radiation Hardening No
Relay Type General Purpose
Release Time 3 ms
RoHS Compliant
Termination PC Pin
Throw Configuration DPDT
Voltage Rating (AC) 250 V
Voltage Rating (DC) 220 V
Width 10.1 mm
Win Source Part Number 1060282-G6A-274P-ST-US-DC5
Categories Signal Relays,Up to 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G6A-274P-ST-US-DC5 CAD Model

Description

The Omron G6A-274P-ST-US-DC5 is a general-purpose relay used in various industrial applications.

  • Coil Type: Non-latching
  • Coil Resistance: 125 Ω
  • Contact Material: Silver
  • Current Rating: 2 A
  • Package: DIP
  • Pins: 8
  • Mounting Type: SMD (SMT)
  • Termination: PC pin
  • Win Source part number: 1060282-G6A-274P-ST-US-DC5
