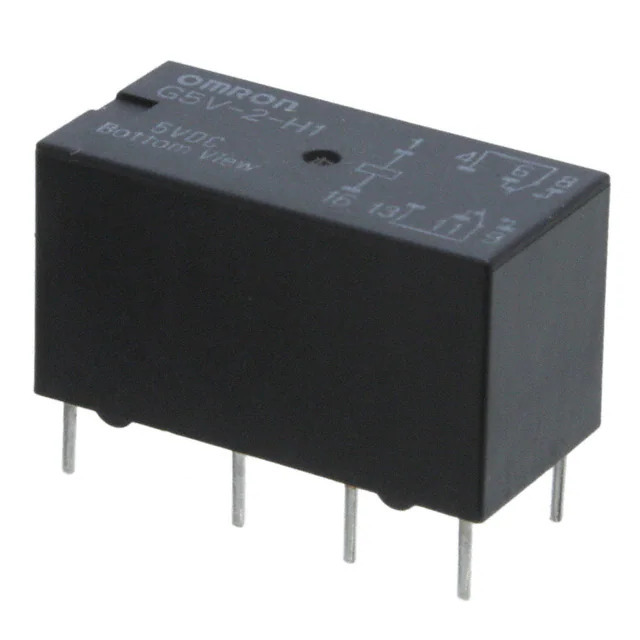

G5V-2-H1 DC5 Omron
Same model may have multiple batches, images only for reference.

G5V-2-H1 DC5

Part No G5V-2-H1 DC5
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 5VDC
Datasheet
G5V-2-H1 DC5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5V-2
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 125VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.25 VDC
Operate Time 7 ms
Release Time 3 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 167 Ohms
Base Product Number G5V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373483-G5V-2-H1 DC5
Ultra Librarian 3D Model Ultra Librarian G5V-2-H1 DC5 CAD Model

Description

The G5V-2-H1 DC5 is a signal relay manufactured by Omron Electronics Inc-EMC Div.

  • Series: G5V-2
  • Mounting Type: Through Hole
  • Coil Voltage: 5VDC
  • Contact Rating: 1A
  • Contact Form: DPDT
  • Switching Voltage (Max): 125VAC and 125VDC
  • Coil Current: 30mA
  • Operate Time: 7ms
  • Release Time: 3ms
  • Relay Type: Sealed, Fully Sealed
  • Contact Material: Silver (Ag) and Gold (Au)
  • Must Operate Voltage: 3.75VDC
  • Must Release Voltage: 0.25VDC
  • Category: Signal Relay
  • Operating Temperature: -25°C to 70°C
  • Packaging: Tube
  • Product Status: Active
