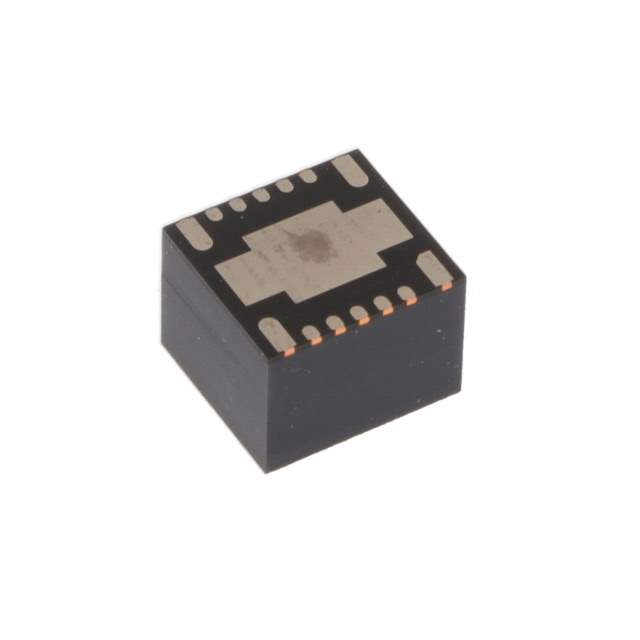

The TPSM53603RDAR from Texas Instruments is a highly efficient, synchronous step-down converter that is designed to simplify the power supply design process for a wide range of applications. This compact and robust module integrates a power MOSFET, inductor, and the associated control circuitry into a small package, reducing the need for external components and simplifying the overall design.

Key Features

• Input Voltage Range: The device supports an input voltage range of 3.8V to 36V, making it versatile for various systems and ensuring stable operation even during fluctuations in the input supply.
• Output Voltage: It delivers an adjustable output voltage from 1V to 17V, which can be set using external resistors, catering to a broad spectrum of power requirements.
• Output Current: The TPSM53603RDAR can supply up to 3A of continuous output current, making it suitable for powering a diverse set of ICs and peripherals.
• High Efficiency: With its synchronous step-down operation, the device achieves high efficiency, which minimizes heat generation and improves system reliability.
• Thermal Management: Its excellent thermal performance is ensured by an integrated heat sink, which allows for operation in high-temperature environments without the need for additional cooling solutions.
• Protection Features: The module includes over-current, over-voltage, under-voltage, and thermal shutdown protections to safeguard the system against various fault conditions.
• Compact Size: The small 15mm x 9mm x 4mm QFN package is ideal for space-constrained applications.

Applications

The TPSM53603RDAR is suitable for a variety of applications, including but not limited to industrial automation, telecommunications, networking equipment, and consumer electronics. Its ease of use and integrated features make it an excellent choice for designers looking for a reliable power solution that can be rapidly deployed in their systems.

With the TPSM53603RDAR, Texas Instruments continues to provide innovative, high-performance power management solutions that meet the evolving needs of modern electronic systems.
