Same model may have multiple batches, images only for reference.

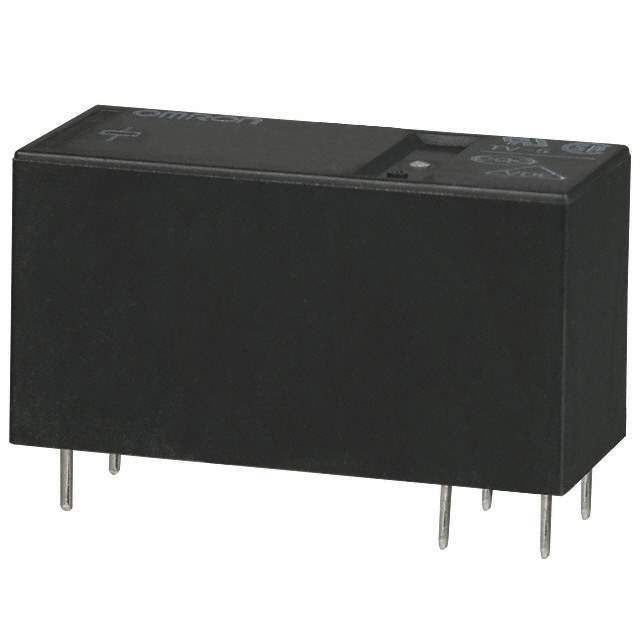

G5RL-1A-E-LN DC12 Real Image
Same model may have multiple batches, images only for reference.

G5RL-1A-E-LN DC12

Part No G5RL-1A-E-LN DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5RL
Package Bulk
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 44.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 272 Ohms
Base Product Number G5RL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1314695-G5RL-1A-E-LN DC12
Ultra Librarian 3D Model Ultra Librarian G5RL-1A-E-LN DC12 CAD Model

Description

The Omron 1314695-G5RL-1A-E-LN DC12 is a general-purpose relay with a contact rating of 16 A. It has a switching voltage of 250VAC and 24VDC - Max. This product is ideal for use in power relays over 2 Amps. It has a PC pin termination style and is non-latching. The coil voltage is 12VDC and the coil resistance is 272 Ohms. The operate time and release time are both 15 ms. This product is recommended for use in electronic devices that require high switching accuracy and reliability.
