Same model may have multiple batches, images only for reference.

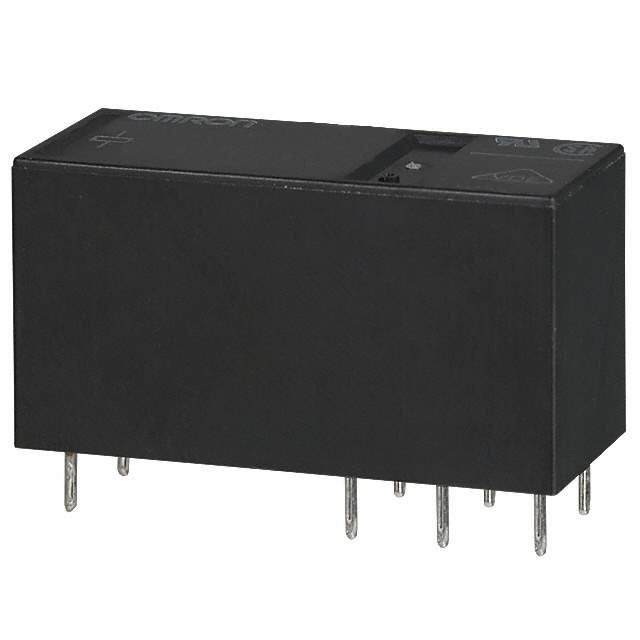

G5RL-1-E-HR DC24 Real Image
Same model may have multiple batches, images only for reference.

G5RL-1-E-HR DC24

Part No G5RL-1-E-HR DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5RL
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number G5RL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Names Z3830,G5RL1EHR24DC,G5RL-1-E-HRDC24-ND,-G5RL-1-E-HR DC24,G5RL-1-E-HRDC24,G5RL1EHRDC24,G5RL6195D
Standard Package 100
Win Source Part Number 1000240-G5RL-1-E-HR DC24
Ultra Librarian 3D Model Ultra Librarian G5RL-1-E-HR DC24 CAD Model

Description

The G5RL series relay from Omron Electronics Inc-EMC Div is a power relay designed for general purpose use.

  • Contact Form: SPDT (1 Form C)
  • Switching Voltage: 250VAC and 24VDC
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7 mA
  • Contact Rating: 16 A
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: Through hole
  • Seal Rating: Sealed-flux protection
  • Package: Bulk package
  • Standard Package: 100
