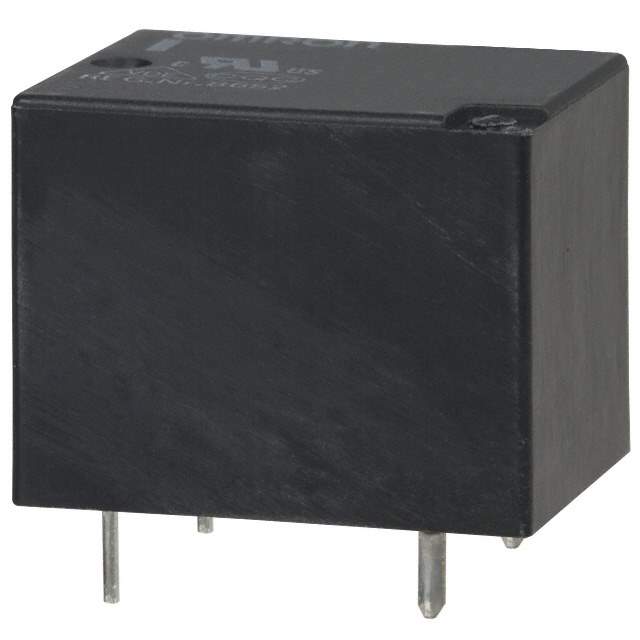

G5LA-14 DC5 Real Image
Same model may have multiple batches, images only for reference.

G5LA-14 DC5

Part No G5LA-14 DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Datasheet
G5LA-14 DC5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5LA
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 72 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class A
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 69 Ohms
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Other Names G5LA-14-DC5,G5LA145DC,G5LA14DC5,G2RL5001M,Z2560
Standard Package 100
Win Source Part Number 1178081-G5LA-14 DC5
Ultra Librarian 3D Model Ultra Librarian G5LA-14 DC5 CAD Model

Description

The Omron G5LA-14 DC5 is a general-purpose power relay used in various applications.

  • Product Name: Omron G5LA-14 DC5
  • Contact Form: SPDT
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 5VDC
  • Coil Resistance: 69 Ohms
  • Contact Rating (Current): 5 A
  • Switching Voltage: 250VAC, 24VDC - Max
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C ~ 85°C
  • Package: Tray
  • Standard Package: 100
  • Status: Obsolete
  • Alternative Parts (Cross-Reference): G5LA-14-DC5, G5LA-14DC5, G5LA14 DC5, G5LA14DC5, and Z2560
