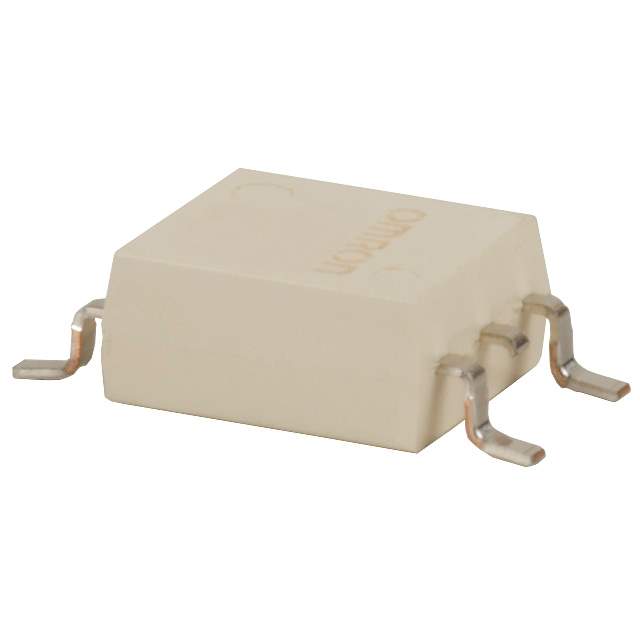

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 35 Ohm
Load Current 120mA
Voltage - Input 1.15VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 4-SOP
Relay Type Relay
Win Source Part Number 1040675-G3VM-S2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian G3VM-S2 CAD Model

Description

The Omron Electronics G3VM-S2 is an obsolete SPST-NO relay manufactured by Omron Electronics.

  • Manufacturer: Omron Electronics
  • Relay Type: SPST-NO
  • Status: Obsolete
  • Voltage Input: 1.15VDC
  • Load Current: 120mA
  • Maximum On Resistance: 35 ohms
  • Maximum Load Voltage: 350V
  • Termination Style: Gull Wing
  • Mounting Type: SMD
