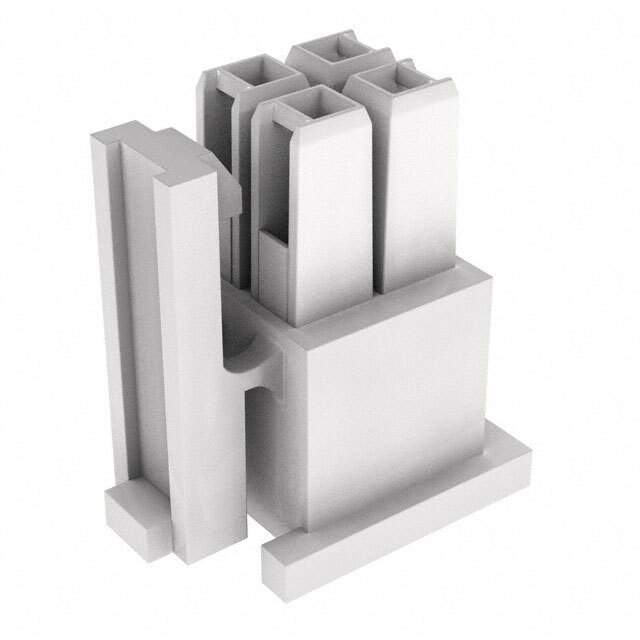

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features 4 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
Manufacturer Samtec Inc.
Series Mini Mate® IPD1
Package Bulk
Mounting Free Hanging (In-Line)
Family Name IPD1-02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number IPD1-02-D-ND, Q3594043A, SAM10558
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 921275-IPD1-02-D
Ultra Librarian 3D Model Ultra Librarian IPD1-02-D CAD Model

Description

The Samtec Inc. Mini Mate® IPD1 series connector from is a 4 rectangular connectors - housings receptacle white 0.100" (2.54mm) product that is available in bulk packaging.

  • Mounting: Free hanging (in-line) mounting connector
  • Family: IPD1-02
  • ECCN: EAR99 compliant
  • HTSUS: 8538.90.6000 compliant
  • Quantity per Package: 1
  • Estimated Production Lead Time: 8 weeks
  • REACH: Unaffected
  • Other Part Numbers: IPD1-02-D-ND, Q3594043A, SAM10558
