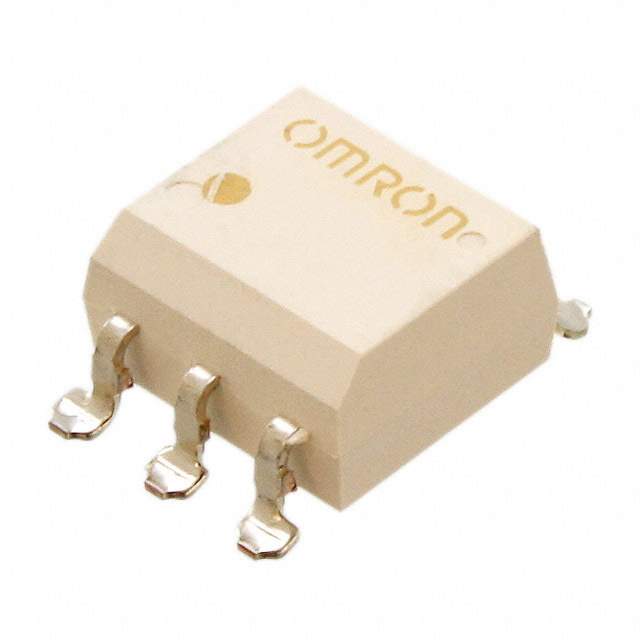

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G3VM
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 60 mOhm
Load Current 3.5A
Voltage - Input 1.33VDC
Voltage - Load 0 ~ 40 V
Mounting SMD
Termination Style Gull Wing
Package 6-SMD (0.300", 7.62mm)
Manufacturer Package 6-SMD
Relay Type Relay
Win Source Part Number 774902-G3VM-41ER
Popularity Medium
Supply and Demand Status Limited
Family Name G3VM-41ER
Introduction Date January 24, 2012
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian G3VM-41ER CAD Model

Description

The Omron G3VM-41ER is a SPST-NO (1 Form A) relay type electronic component suitable for use in relays manufactured by Omron Electronics Inc-EMC Div.

  • Input Voltage: 1.33VDC
  • Load Current: 3.5A
  • Voltage Load: 0 ~ 40 V
  • On-State Resistance (Maximum): 60 mOhm
  • Win Source Part Number: 774902-G3VM-41ER
  • Package: Tube
