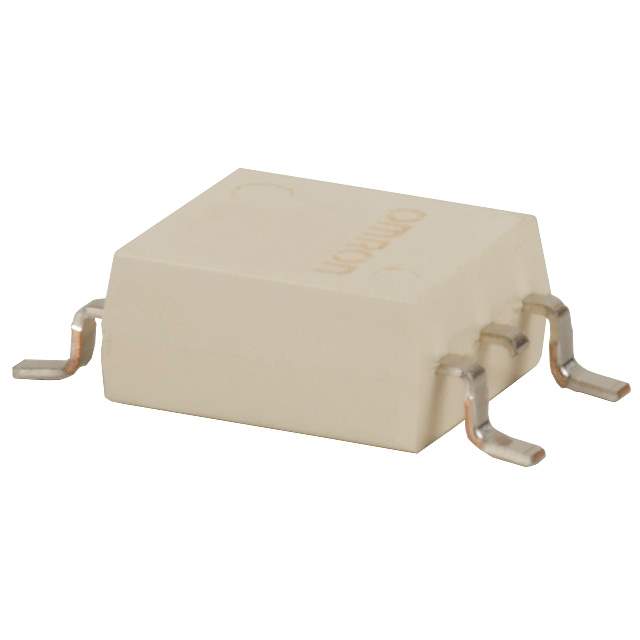

The G3VM-351GLTR is a Photovoltaic MOSFET SSR (Solid State Relay) manufactured by Omron. It is designed for high-frequency measurement equipment and features low output capacitance and on-resistance.

Applications:

• High-Frequency Measurement Equipment: Used in oscilloscopes, spectrum analyzers, and other high-frequency instruments.
• Semiconductor Testers: Employed in automatic test equipment (ATE) for testing semiconductors.
• Medical Equipment: Used in medical imaging and diagnostic equipment.
• Communication Equipment: Integrated into communication systems for signal switching.
• Security Systems: Utilized in security systems for controlling access and monitoring devices.
• Industrial Automation: Used in industrial control systems for switching signals and controlling actuators.

Features:

• Low Output Capacitance: Minimizes signal distortion in high-frequency applications.
• Low On-Resistance: Reduces voltage drop and power dissipation.
• High Isolation Voltage: Provides high isolation between input and output.
• Fast Switching Speed: Enables rapid switching of signals.
• Surface Mount Package: Available in a small surface mount package.
• Photovoltaic Isolation: Uses photovoltaic cells for isolation.

Benefits:

• High Performance: Low output capacitance and on-resistance enable high-performance switching.
• Reliable Operation: Solid-state design ensures reliable and long-lasting operation.
• Safe Isolation: High isolation voltage provides safe isolation between input and output.
• Compact Design: Small package size allows for integration into compact devices.
• Reduced Power Consumption: Low on-resistance minimizes power dissipation.

Additional Details:

The G3VM-351GLTR requires a control voltage to activate the internal LED, which then generates a voltage through the photovoltaic cells. This voltage turns on the MOSFET, allowing current to flow between the output terminals. The switching speed is determined by the characteristics of the LED and MOSFET. The datasheet provides detailed specifications, including output capacitance, on-resistance, isolation voltage, and switching speed. The surface mount package facilitates automated assembly. The use of photovoltaic isolation eliminates the need for external power supplies for the gate drive circuit.
