Same model may have multiple batches, images only for reference.

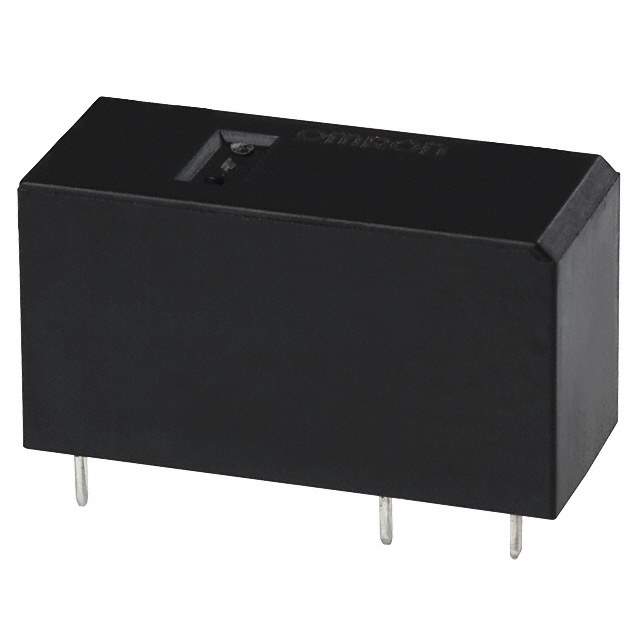

G2RL-14-E DC12 Real Image
Same model may have multiple batches, images only for reference.

G2RL-14-E DC12

Part No G2RL-14-E DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2RL
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Names G2RL-14-E DC12 BY OMB,Z2920,G2RL-14-E-DC12-ND,G2RL14E12DC,G2RN8192E,G2RL14EDC12,G2RL14EDC12BYOMB,G2RL-14-E-DC12
Standard Package 100
Win Source Part Number 1202476-G2RL-14-E DC12
Ultra Librarian 3D Model Ultra Librarian G2RL-14-E DC12 CAD Model

Description

The G2RL-14-E DC12 is a power relay from Omron Electronics Inc-EMC Div.

  • Type: Single-pole double-throw relay
  • Termination Style: PC pin
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 ohms
  • Contact Rating: 16A
  • Switching Voltage: 440VAC and 300VDC
  • Relay Type: General purpose
  • Seal Rating: Fully sealed
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through-hole
  • Packaging: Tube
