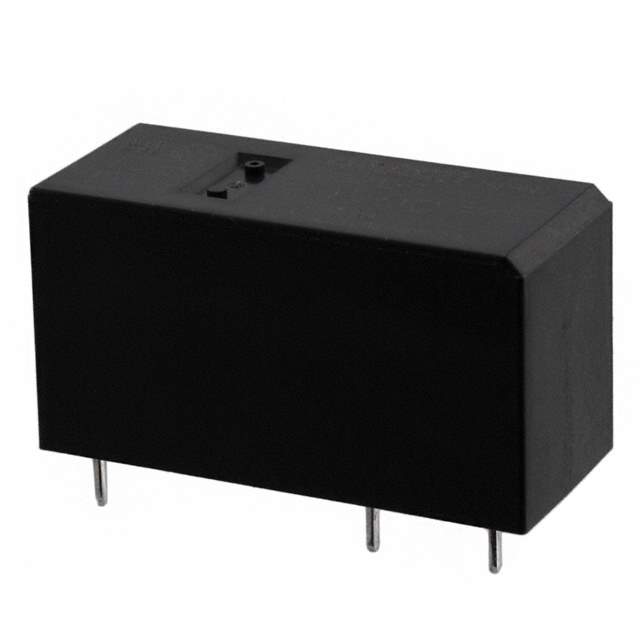

G2RL-1 DC12 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1 DC12

Part No G2RL-1 DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2RL
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number G2R
Other Names G2RN8147M,G2RL1DC12BYOMB,G2RL112DC,G2RL-1 DC12 BY OMB,Z3076,G2RL1DC12,G2RL-1-DC12,G2RL-1-DC12
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1237298-G2RL-1 DC12
Ultra Librarian 3D Model Ultra Librarian G2RL-1 DC12 CAD Model

Description

The G2RL-1 DC12 is a power relay manufactured by Omron Electronics Inc-EMC Div.

  • Switching Voltage: 440VAC and 300VDC
  • Contact Rating: 12A
  • Operate Time: 15ms
  • Release Time: 5ms
  • Must Operate Voltage: 8.4VDC
  • Must Release Voltage: 1.2VDC
