2301843-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2301843-1

Part No 2301843-1
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

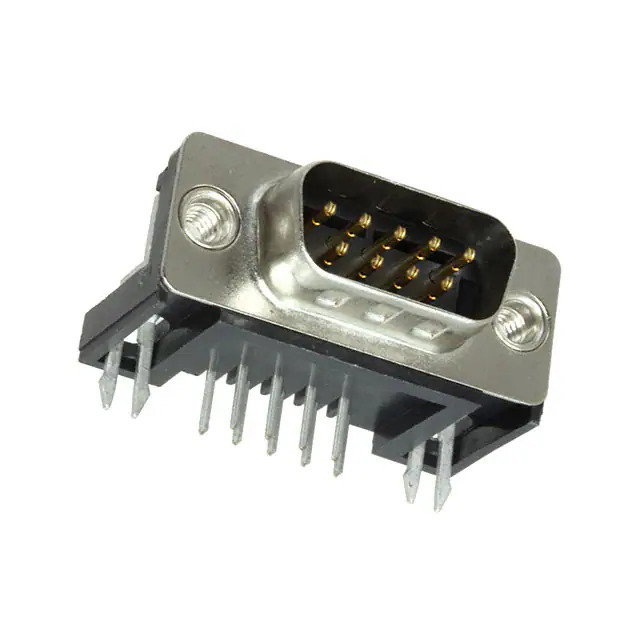

Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A per Contact
Backset Spacing 0.411" (10.43mm)
Features Board Lock, Grounding Indents
Voltage Rating 250VAC
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 2301843
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365129-2301843-1
Ultra Librarian 3D Model Ultra Librarian 2301843-1 CAD Model

Description

The AMPLIMITE HD-20 D-sub connector assembly is a versatile and reliable solution for various electronic applications. Bold text is TE Connectivity AMP Connectors.

  • Temperature Range: -55°C to 105°C
  • Mounting: Through-hole, Right Angle
  • Termination: Solder
  • Type: Plug
  • Pins: Male
  • Positions: 9
  • Rows: 2
  • Current Rating: 2A
  • Plating: Gold
  • Color: Black
  • Packaging: Tray
  • Features: Board Lock, Grounding Indents
