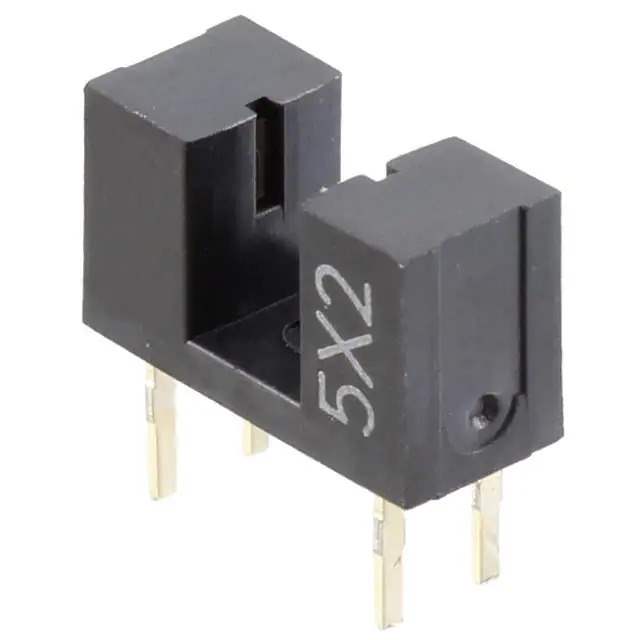

EE-SX1055 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Omron
Package Bulk
Product Status Active
Sensing Distance 0.110" (2.8mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Response Time 4µs, 4µs
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Through Hole
Package / Case PCB Mount
Type Unamplified
Standard Package 100 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 588275-EE-SX1055
Ultra Librarian 3D Model Ultra Librarian EE-SX1055 CAD Model

Description

The 588275-EE-SX1055 is an unamplified slot-type optical sensor with a phototransistor output configuration.

  • Sensing Method: Through-Beam
  • Sensing Distance: 0.110" (2.8mm)
  • Response Time: 4µs
  • Voltage - Collector Emitter Breakdown: 30V
  • Maximum Collector Current: 20mA
  • Operating Temperature Range: -25°C to 85°C
  • Mounting Type: Through-Hole
  • Package: PCB Mount
  • Manufacturer: Omron
  • Status: Active
