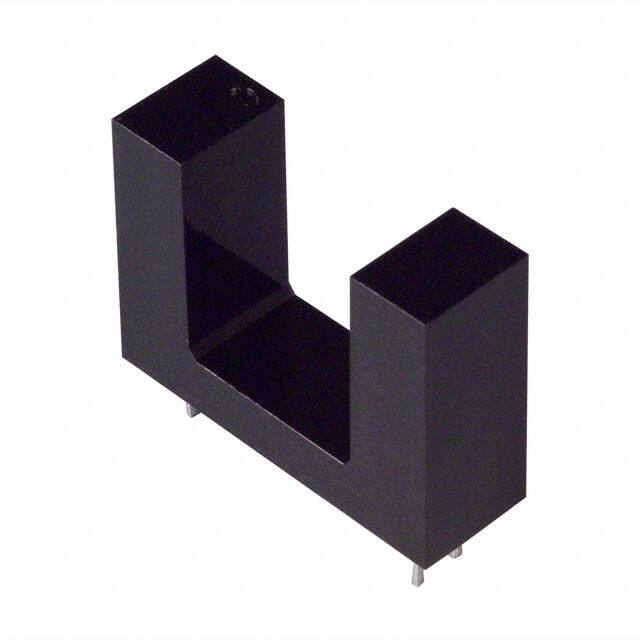

Part No CNZ1120
Manufacturer Panasonic
Catalog Optical Sensors
Description SENSOR OPT SLOT PHOTOTRAN PCB MT
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Panasonic
Package Bulk
Product Status Obsolete
Sensing Distance 0.394" (10mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 20 V
Response Time 6µs, 6µs
Temperature Range - Operating -5°C ~ 60°C
Mounting Type Through Hole
Package / Case PCB Mount
Type Unamplified
Standard Package 250 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 848581-CNZ1120
Ultra Librarian 3D Model Ultra Librarian CNZ1120 CAD Model

Description

The Panasonic CNZ1120 is an optical sensor photointerrupter with a slot type and transistor output.

  • Sensor Type: Optical Sensor Photointerrupter
  • Sensing Type: Slot Type
  • Output Type: Transistor
  • Amplified/Unamplified: Unamplified
  • Package: Bulk
  • Response Time: 6µs
  • Standard Package Quantity: 250 pcs
  • Voltage Collector-Emitter Breakdown: 20V
  • Maximum Collector Current: 20mA
  • Output Configuration: Phototransistor
  • Sensing Method: Through-Beam
  • Sensing Distance: 0.394" (10mm)
  • Temperature Range: -5°C to 60°C
