Same model may have multiple batches, images only for reference.

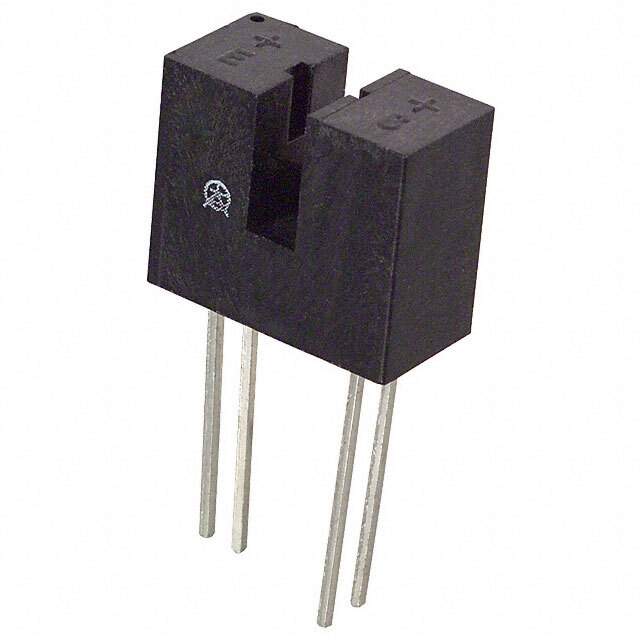

OPB847 Real Image
Same model may have multiple batches, images only for reference.

OPB847

Part No OPB847
Manufacturer TT Electronics
Catalog Optical Sensors
Description SENSOR OPT SLOT PHOTOTRAN PCB MT / Optical Sensor Through-Beam 0.100" (2.54mm) Phototransistor PCB Mount
Datasheet
OPB847 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr TT Electronics/Optek Technology
Package Bulk
Sensing Distance 0.100" (2.54mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Response Time 12µs, 12µs
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case PCB Mount
Type Unamplified
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1348732-OPB847
Ultra Librarian 3D Model Ultra Librarian OPB847 CAD Model

Description

The OPB847 is a slot type transistor output photointerrupter from TT Electronics/Optek Technology.

  • Type: Unamplified
  • Sensing Method: Through-Beam
  • Sensing Distance: 0.100" (2.54mm)
  • Package/Case: PCB Mount
  • Voltage Collector Emitter Breakdown (Max): 30 V
  • Output Configuration: Phototransistor
  • Response Time: 12µs, 12µs
  • Mounting Type: Through Hole
  • ECCN: EAR99 compliant
  • REACH: Unaffected
  • HTSUS: 8541.49
