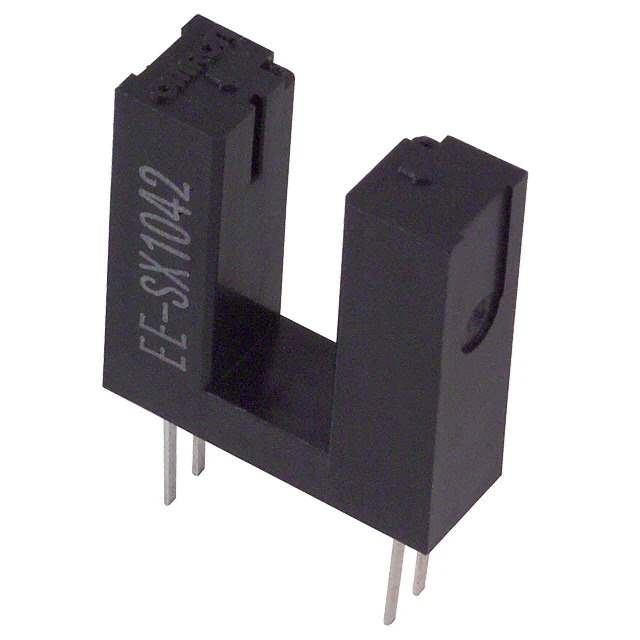

EE-SX1042 Real Image EE-SX1042 label picture
Same model may have multiple batches, images only for reference.
EE-SX1042 Real Image EE-SX1042 label picture
EE-SX1042 Real Image EE-SX1042 label picture
Same model may have multiple batches, images only for reference.

EE-SX1042

Part No EE-SX1042
Manufacturer Omron
Catalog Optical Sensors
Description SENSOR OPT SLOT PHOTOTRAN PCB MT
Datasheet
EE-SX1042 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Omron
Package Bulk
Product Status Active
Sensing Distance 0.197" (5mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Response Time 4µs, 4µs
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Through Hole
Package / Case PCB Mount
Type Unamplified
Standard Package 200 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 588274-EE-SX1042
Ultra Librarian 3D Model Ultra Librarian EE-SX1042 CAD Model

Description

The 588274-EE-SX1042 is an optical sensor from Omron.

  • Product Name: 588274-EE-SX1042
  • Manufacturer: Omron
  • Category: Optical Sensors - Photointerrupters - Slot Type - Transistor Output
  • Amplification: Unamplified
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Standard Package Quantity: 200 pieces
  • Response Time: 4μs
  • Voltage Collector-Emitter Breakdown: Up to 30V
  • Maximum Collector Current: 20mA
  • Maximum Forward Current: 50mA
  • Output Configuration: Phototransistor
  • Sensing Method: Through-Beam
  • Sensing Distance: 0.197" (5mm)
  • Operating Temperature Range: -25°C to 85°C
  • ECCN: EAR99
  • Status: Active
