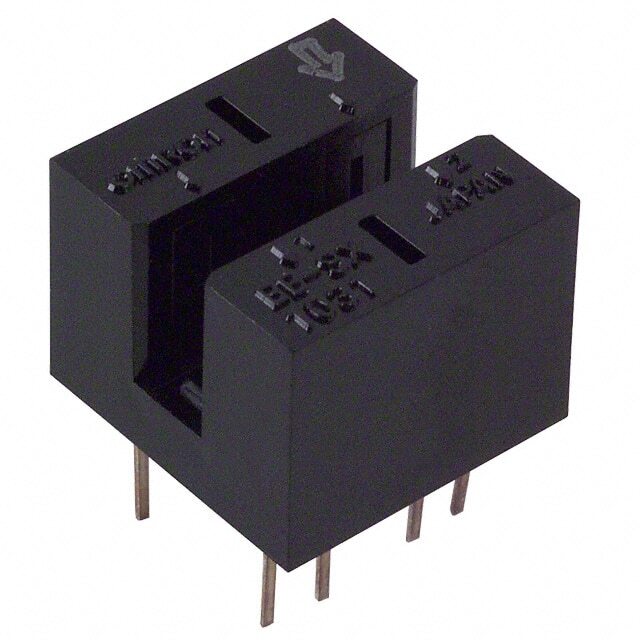

EE-SX1031
Same model may have multiple batches, images only for reference.

EE-SX1031

Part No EE-SX1031
Manufacturer Omron
Catalog Optical Sensors
Description SENSOR OPT SLOT 2 NPN PCB MOUNT
Datasheet
EE-SX1031 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Omron
Package Bulk
Product Status Active
Sensing Distance 0.134" (3.4mm)
Sensing Method Through-Beam
Output Configuration 2 NPN
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Response Time 4µs, 4µs
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Through Hole
Package / Case PCB Mount
Type Unamplified
Standard Package 100 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 847587-EE-SX1031
Ultra Librarian 3D Model Ultra Librarian EE-SX1031 CAD Model

Description

The 847587-EE-SX1031 is a slot-type optical sensor with a transistor output from Omron.

  • Output Type: Transistor
  • Sensing Type: Unamplified
  • Sensing Method: Through-Beam
  • Sensing Distance: 0.134 inches (3.4mm)
  • Response Time: 4 microseconds
  • Voltage Collector-Emitter Breakdown: 30V
  • Maximum Collector Current: 20mA
  • Output Configuration: 2 NPN
  • Operating Temperature: -25°C to 85°C
  • Package: Bulk
  • Mounting Type: PCB Mount
  • Manufacturer: Omron
  • Product Status: Active
