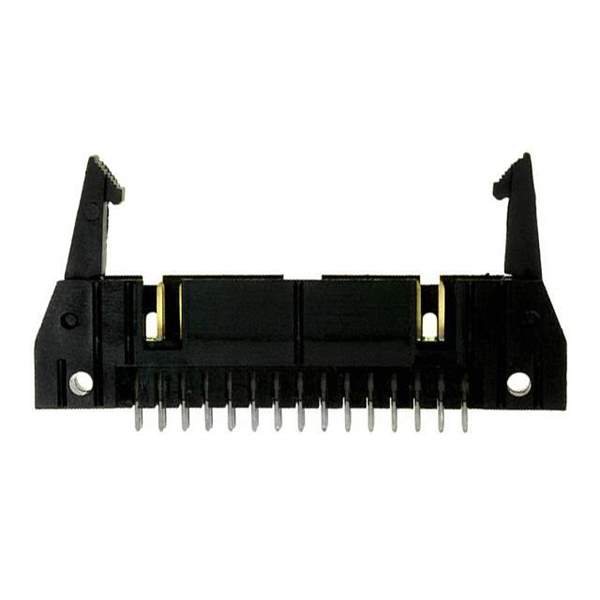

5499206-7 Real Image
Same model may have multiple batches, images only for reference.

5499206-7

Part No 5499206-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 30POS .100 GOLD
Datasheet
5499206-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMP-Latch
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 30
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.639" (16.23mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Features Keying Slot, Mounting Flange
Operating Temperature Range -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A
Voltage Rating 250VAC
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 764007-5499206-7
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5499206-7 CAD Model

Description

{"ProductId":702385,"FormattedDescription":"

The TE Connectivity AMP Connectors 764007-5499206-7 is a header connector with a through-hole mounting style.

  • Pitch-Mating: 0.100 inches (2.54mm)
  • Row Spacing-Mating: 0.100 inches (2.54mm)
  • Shrouding: Shrouded - 4 Wall
  • Contact Shape: Square
  • Contact Length-Mating: 0.240 inches (6.10mm)
  • Overall Contact Length: 0.639 inches (16.23mm)
  • Voltage Rating: 250VAC
  • Current Rating: 1A
  • Compliance: RoHS
  • Flammability Rating: UL94 V-0
"}
