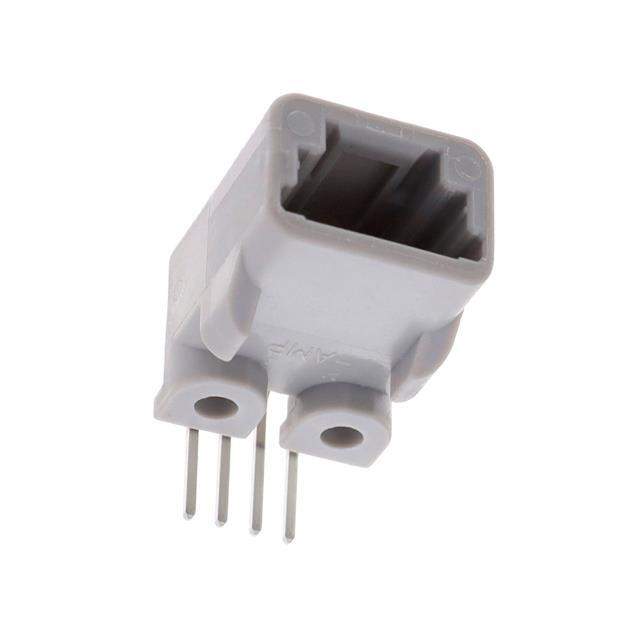

Part No 1565749-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2.2MM / Connector Header Through Hole, Right Angle 4 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.217" (5.50mm)
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.492" (12.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 HB
Insulation Color Gray
Voltage Rating 12VDC
Applications Automotive
Base Product Number 1565749
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1565749-4-LSI,-1565749-4-SI
Standard Package 1,080
Win Source Part Number 1332508-1565749-4
Ultra Librarian 3D Model Ultra Librarian 1565749-4 CAD Model

Description

The 1565749-4 is a header connector manufactured by TE Connectivity AMP Connectors.

  • Mounting: through-hole, right-angle
  • Positions: 4
  • Voltage Rating: 12VDC
  • Insulation Material: syndiotactic polystyrene (SPS), glass-filled
  • Pitch: 0.087" (2.20mm)
  • Shrouding: shrouded-4 wall
  • Contact Length (Mating): 0.217" (5.50mm)
  • Contact Length (Post): 0.157" (4.00mm)
  • Temperature Range: -30°C to 105°C
  • ROHS3: compliant
  • Packaging: tube
  • Standard Package: 1,080
