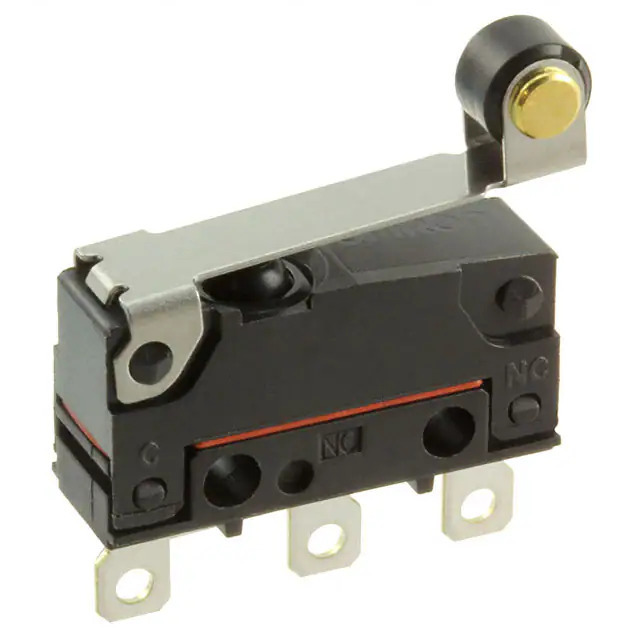

D2SW-P01L2H Omron
Same model may have multiple batches, images only for reference.

D2SW-P01L2H

Part No D2SW-P01L2H
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
D2SW-P01L2H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW-P
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Operating Force 61gf
Release Force 5.099gf
Operating Position 0.571" (14.5mm)
Pretravel -
Differential Travel 0.031" (0.8mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2S
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376153-D2SW-P01L2H
Ultra Librarian 3D Model Ultra Librarian D2SW-P01L2H CAD Model

Description

The D2SW-P01L2H is a limit switch designed for various industrial applications.

  • Series: D2SW-P
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Operating Temperature: -20°C to 70°C
  • Current Rating: 100mA (AC/DC)
  • Voltage Rating: 125VAC and 30VDC
  • Circuit Configuration: SPDT
  • Switch Function: on-mom
  • Actuator Type: Lever and Roller
  • Installation: Chassis Mount
  • Ingress Protection: IP67
