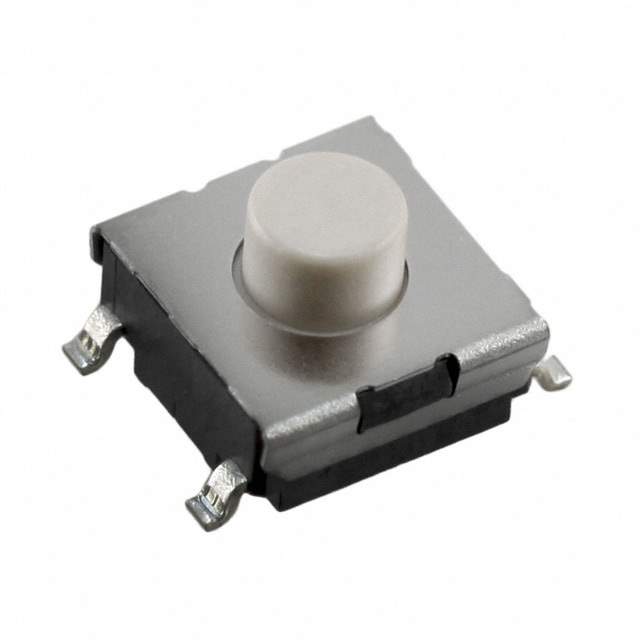

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.30mm x 6.00mm
Illumination Non-Illuminated
Operating Force 150gf
Switch Travel 0.25mm
Mechanical Life 300,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 1021575-B3FS-1012P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B3FS-1012P CAD Model

Description

The Omron B3FS-1012P is a surface mount tactile switch with a SPST-NO circuit.

  • Actuator Type: Top Actuated Standard
  • Actuator Height off PCB: 4.30mm
  • Switch Travel: 0.25mm
  • Switch Function: Off-Mom
  • Operating Force: 150gf
  • Mechanical Life: 300,000 cycles
  • Contact Rating: 0.05A @ 24VDC
  • Illumination: Non-Illuminated
  • Outline: 6.30mm x 6.00mm
  • Operating Temperature: -25°C to 70°C
  • Applications: Space Constraint Tactile Switch
