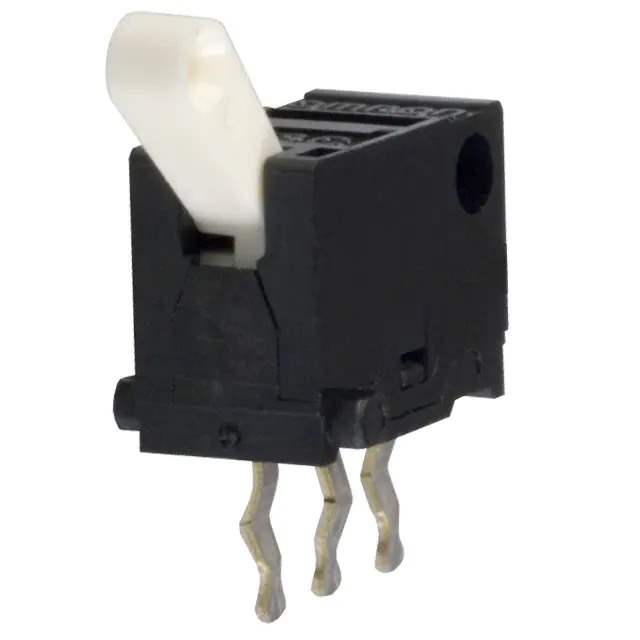

D3C-2220 Real Image
Same model may have multiple batches, images only for reference.

D3C-2220

Part No D3C-2220
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPDT 100MA 30V / Switch SPDT Through Hole
Datasheet
D3C-2220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D3C
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Angled Toggle (Detector)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP00
Operating Force 40gf
Release Force 3.059gf
Operating Position 0.134" (3.4mm)
Temperature Range - Operating -20°C ~ 80°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number D3C
Standard Package 2,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 868024-D3C-2220
Ultra Librarian 3D Model Ultra Librarian D3C-2220 CAD Model

Description

The 868024-D3C-2220 is a limit switch from Omron's D3C series. It features a PC pin termination style and is packaged in bulk. Omron

  • Series: D3C
  • Termination Style: PC Pin
  • Package: Bulk
  • Ingress Protection: IP00
  • Voltage Rating (DC): 30V
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Angled Toggle (Detector)
  • Electrical Life: 50,000 cycles
  • Operating Force: 40gf
  • Mechanical Life: 50,000 cycles
  • Release Force: 3.059gf
  • Operating Position: 0.134" (3.4mm)
  • Mounting Type: Through-Hole
  • Operating Temperature: -20°C to 80°C
