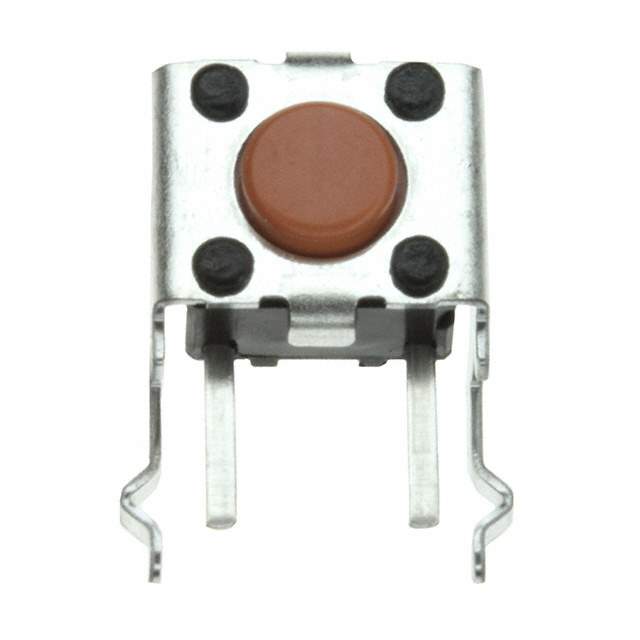

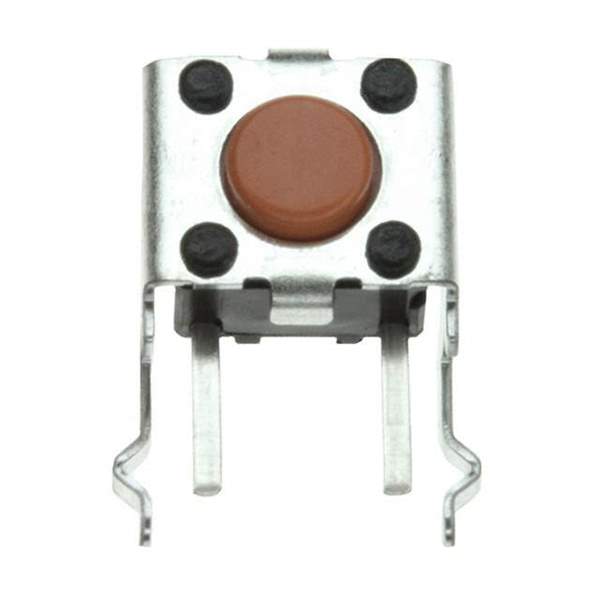

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Series B3F
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Through Hole, Right Angle
Actuator Length, Right Angle 3.15mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.40mm x 7.30mm
Illumination Non-Illuminated
Operating Force 260gf
Features Grounding Pin
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Operating Temperature Range -25°C ~ 70°C
Win Source Part Number 769503-B3F-3105
Popularity Medium
Supply and Demand Status Balance
Family Name B3F
Introduction Date June 26, 1998
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B3F-3105 CAD Model

Description

The Omron 769503-B3F-3105 is a high-quality electronic component suitable for a variety of applications.

  • Manufacturer: Omron Electronics Inc-EMC Div
  • Packaging Style: Bulk
  • Termination Style: PC Pin
  • Mounting Style: Through-Hole, Right Angle
  • Grounding Pin: Yes
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Actuator Orientation: Side Actuated
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Win Source Part Number: 769503-B3F-3105
