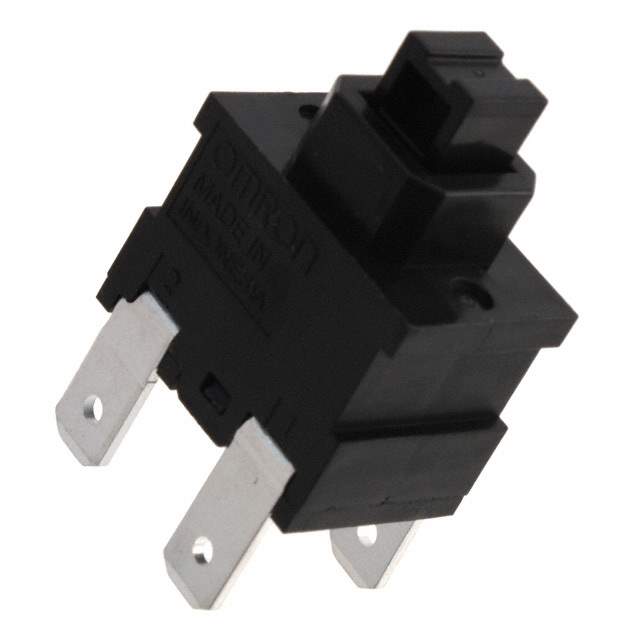

C4V-821M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr Omron Electronics Inc-EMC Div
Series C4V
Package Tray
Mounting Type Panel Mount, Side
Type Standard
Circuit DPST-NO
Switch Function Off-Mom
Current Rating (Amps) 8A (AC)
Voltage Rating - AC 125 V
Actuator Type Square, Plunger
Actuator Marking No Marking
Termination Style Quick Connect - 0.187" (4.7mm)
Temperature Range - Operating -10°C ~ 55°C
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number C4V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9035
Other Names SW1222,C4V821M,2266-C4V-821M
Standard Package 100
Win Source Part Number 1050883-C4V-821M
Ultra Librarian 3D Model Ultra Librarian C4V-821M CAD Model

Description

The Omron C4V is a DPST-NO circuit pushbutton switch with an off-mom switch function.

  • Actuator Type: square plunger
  • Termination Style: quick connect termination style of 0.187 inches
  • Voltage Rating-AC: 125 V
  • Current Rating: 8A
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 10,000 cycles
  • Mounting: panel with side mounting type
  • Operating Temperature Range: -10°C to 55°C
  • Switch Type: standard type
  • Package: tray
