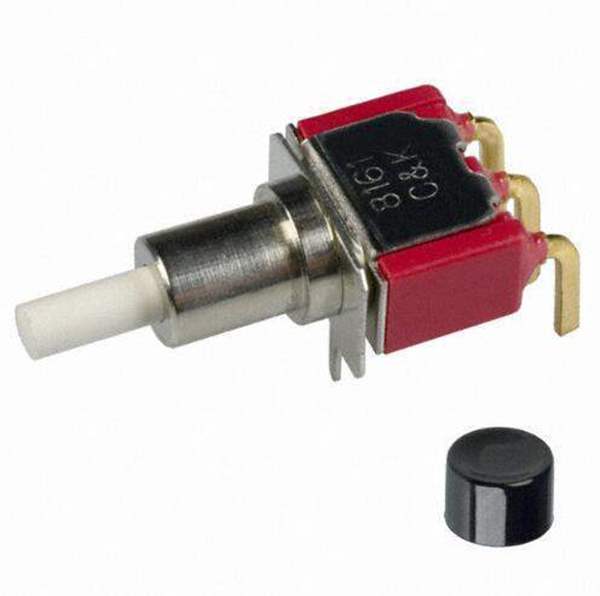

8168SH9ABE2C&K
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer C&K
Category Switches Pushbutton Switches
Part Status Active
Mounting Type Through Hole, Right Angle
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Actuator Type Round, Button
Actuator Marking No Marking
Actuator Marking Epoxy Sealed Terminals
Operating Temperature -30°C ~ 65°C
Electrical Life 50,000 Cycles
Win Source Part Number WS1304293-8168SH9ABE2
Ultra Librarian 3D Model Ultra Librarian 8168SH9ABE2 CAD Model

Description

Pushbutton Switch SPDT Standard Through Hole, Right Angle
