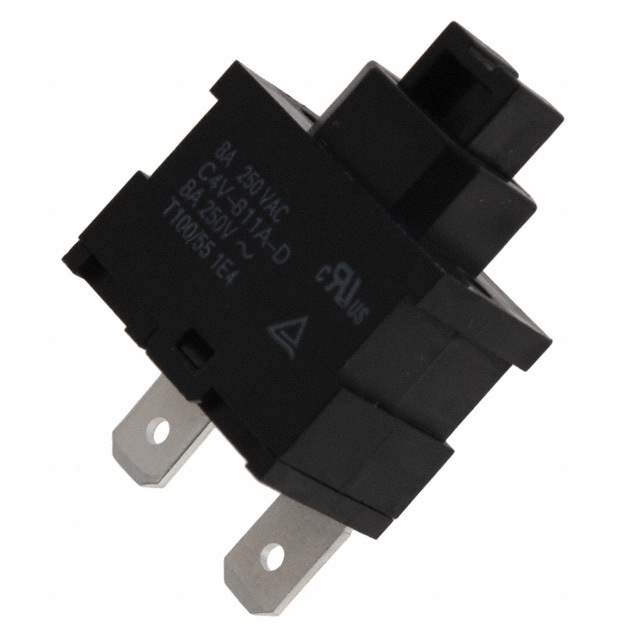

C4V-811A-D Real Image
Same model may have multiple batches, images only for reference.

C4V-811A-D

Part No C4V-811A-D
Manufacturer Omron
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPST 8A 125V / Pushbutton Switch SPST Standard Panel Mount, Side
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr Omron Electronics Inc-EMC Div
Series C4V
Package Tray
Mounting Type Panel Mount, Side
Type Standard
Circuit SPST
Switch Function Off-On
Current Rating (Amps) 8A (AC)
Voltage Rating - AC 125 V
Actuator Type Square, Plunger
Actuator Marking No Marking
Termination Style Quick Connect - 0.187" (4.7mm)
Temperature Range - Operating -10°C ~ 55°C
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number C4V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9035
Other Names 2266-C4V-811A-D,C4V811AD,SW1225
Standard Package 100
Win Source Part Number 1103712-C4V-811A-D
Ultra Librarian 3D Model Ultra Librarian C4V-811A-D CAD Model

Description

The C4V-811A-D is a standard pushbutton switch from Omron Electronics Inc-EMC Div.

  • Circuit: SPST
  • Switch Function: Off-On
  • Actuator Type: square plunger
  • Mechanical Life: 10,000 cycles
  • Current Rating: 8A (AC)
  • Voltage Rating: 125V AC
  • Operating Temperature Range: -10°C to 55°C
  • Mounting: panel mount, side mounting type
  • Package: tray
  • Termination Style: quick connect - 0.187" (4.7mm)
