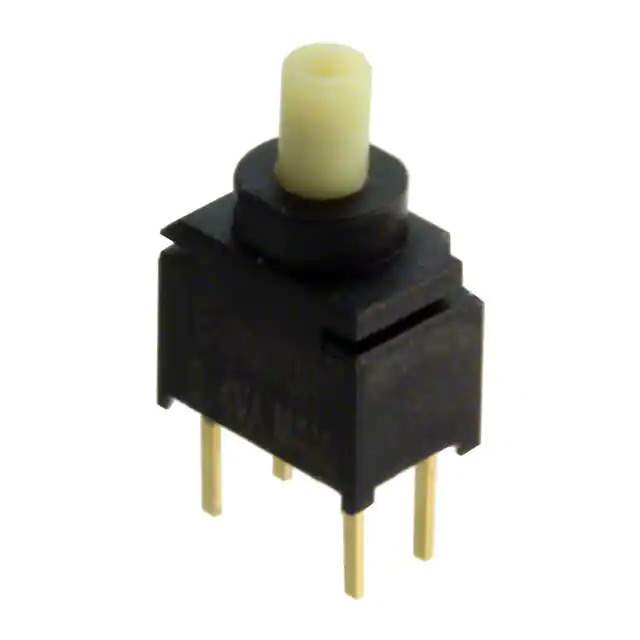

800USP8P1A1M2RE Real Image
Same model may have multiple batches, images only for reference.

800USP8P1A1M2RE

Part No 800USP8P1A1M2RE
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V / Pushbutton Switch SPDT Standard Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series 800U
Package Tube
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 40,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number 800USP8
Standard Package 65 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 858314-800USP8P1A1M2RE
Ultra Librarian 3D Model Ultra Librarian 800USP8P1A1M2RE CAD Model

Description

The 800USP8P1A1M2RE is a standard pushbutton switch from E-Switch.

  • Actuator Type: Plunger for Cap
  • Circuit: SPDT
  • Voltage Rating: 20 V AC/DC
  • Ingress Protection: IP67 (Epoxy Sealed, Dust Tight and Waterproof)
  • Mechanical Life: 40,000 Cycles
  • Electrical Life: 6,000 Cycles
  • Mounting Type: Through Hole
  • Operating Temperature: -30°C ~ 85°C
