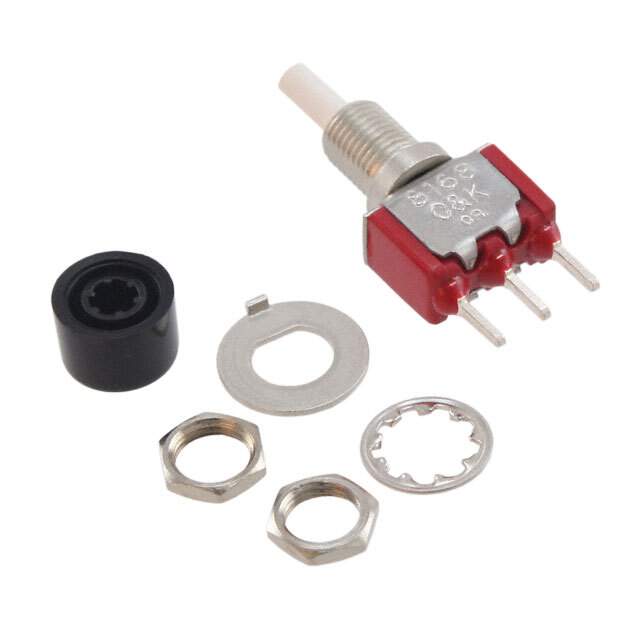

8168SHCQE2 Real Image
Same model may have multiple batches, images only for reference.

8168SHCQE2

Part No 8168SHCQE2
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 6A 120V
Datasheet
8168SHCQE2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 9 Weeks
Features Pushbutton Switch SPDT Standard Panel Mount, Rear
Manufacturer C&K Components
Series 8060
Package Tray
Operating Temperature Range -30°C ~ 65°C
Mounting Panel Mount, Rear
Family Name 8168SH
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9035
Other Part Number *8168SHCQE2, 8168SHCQE2-ND, CKN10189
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844534-8168SHCQE2
Ultra Librarian 3D Model Ultra Librarian 8168SHCQE2 CAD Model

Description

The C&K Components 8060 series pushbutton switch is a SPDT standard panel mount switch designed for rear mounting. This 8168SH switch has an operating temperature range of -30°C to 65°C and comes in a tray package.

  • Switch Type: Pushbutton
  • Configuration: SPDT
  • Mounting Type: Panel Mount
  • Mounting Location: Rear Mounting
  • Temperature Range: -30°C to 65°C
  • Package: Tray
  • Family: 8168SH
  • Category: Switches
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Quantity per Package: 1
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 9 weeks
  • REACH: Affected
  • HTSUS: 8536.50.9035
  • Other Part Numbers: *8168SHCQE2, 8168SHCQE2-ND, CKN10189
