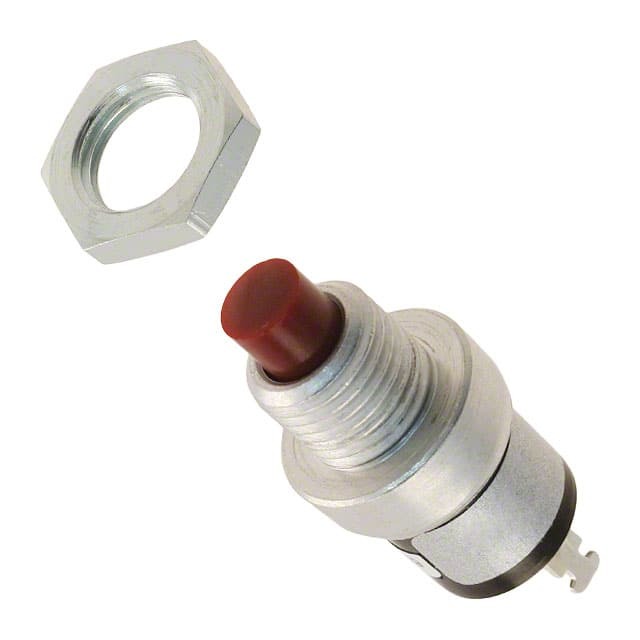

23-1-E
Same model may have multiple batches, images only for reference.

23-1-E

Part No 23-1-E
Manufacturer Grayhill Inc.
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.25A 115V / Pushbutton Switch SPST-NO Standard Panel Mount, Rear
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Grayhill Inc.
Series 23
Package Bulk
Product Status Active
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 250mA (AC)
Voltage Rating - AC 115 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Red
Termination Style Solder Lug
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 100,000 Cycles
Electrical Life 100,000 Cycles
Base Product Number 23-1
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 907662-23-1-E
Ultra Librarian 3D Model Ultra Librarian 23-1-E CAD Model

Description

The 907662-23-1-E is a standard pushbutton switch from Grayhill Inc.

  • Series: 23
  • Circuit: SPST-NO
  • Actuator Type: Round, Plunger
  • Actuator/Cap Color: Red
  • Termination Style: Solder Lug
  • Mounting Type: Panel Mount, Rear
  • Voltage Rating: 115 V AC
  • Current Rating: 250mA (AC)
  • Electrical Life: 100,000 Cycles
  • Mechanical Life: 100,000 Cycles
  • Sealing: Epoxy Sealed Terminals
  • Operating Temperature: -40°C to 85°C
