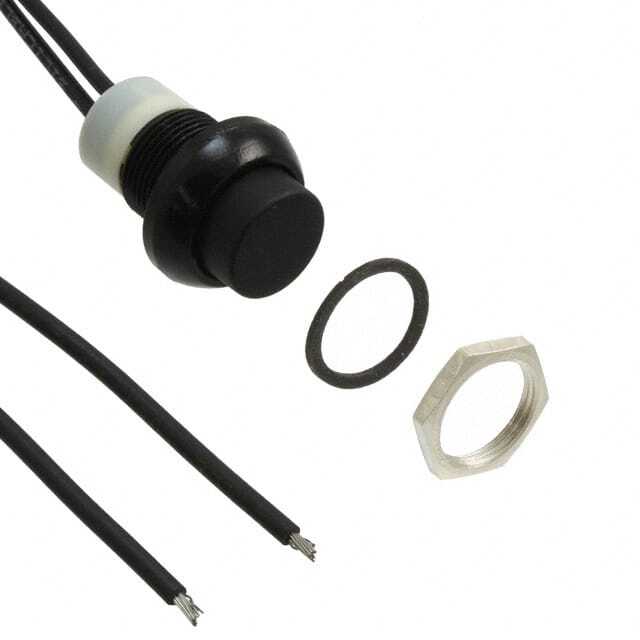

ICP3FAD2
Same model may have multiple batches, images only for reference.

ICP3FAD2

Part No ICP3FAD2
Manufacturer Apem Inc.
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 5A 48V / Pushbutton Switch SPST-NO Standard Panel Mount, Front
Datasheet
ICP3FAD2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr APEM Inc.
Series IC
Package Bulk
Product Status Active
Mounting Type Panel Mount, Front
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 500mA (AC), 5A (DC)
Voltage Rating - AC 48 V
Voltage Rating - DC 28 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 13.60mm Dia
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 500,000 Cycles
Base Product Number ICP3F
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
California Prop 65 Warning Information
Win Source Part Number 874219-ICP3FAD2
Ultra Librarian 3D Model Ultra Librarian ICP3FAD2 CAD Model

Description

The ICP3FAD2 is a standard pushbutton switch from APEM Inc.

  • Series: IC
  • Circuit: SPST-NO
  • Actuator Type: Round, Button
  • Actuator/Cap Color: Black
  • Mounting: Panel mount, Front
  • Termination: Wire Leads
  • Voltage Rating: 48V AC / 28V DC
  • Electrical Life: 500,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Terminals: Epoxy Sealed
  • Ingress Protection: IP67
  • Operating Temperature: -40°C to 85°C
  • Panel Cutout: 13.60mm diameter
