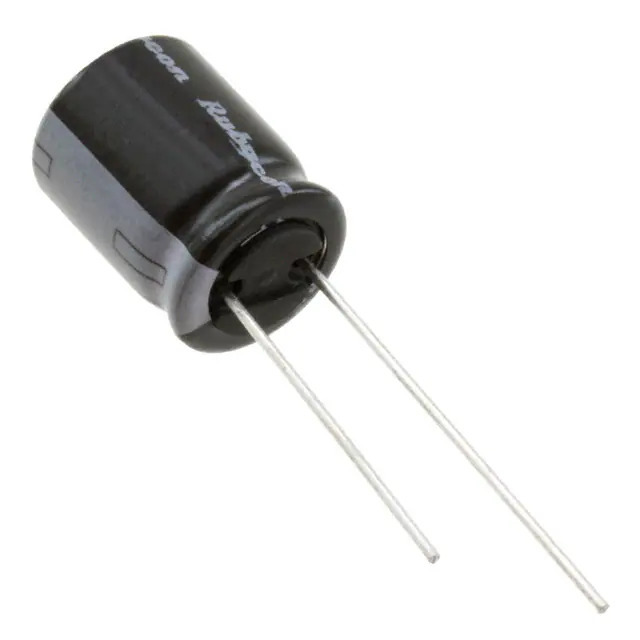

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 203 mA @ 120 Hz
Ripple Current @ High Frequency 290 mA @ 100 kHz
Impedance 310 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357925-100YXF47MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 100YXF47MEFC10X16 CAD Model

Description

The Rubycon 1357925-100YXF47MEFC10X16 is a general-purpose aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 100 V, suitable for a variety of electronic applications.

  • Capacitance: 47 µF
  • Voltage Rating: 100 V
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 203 mA @ 120 Hz
  • Ripple Current @ High Frequency: 290 mA @ 100 kHz
  • Lifetime: 7000 hours @ 105°C
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Series: YXF
  • Packaging: Bulk
  • REACH Status: Unaffected
  • ECCN: EAR99
