Same model may have multiple batches, images only for reference.

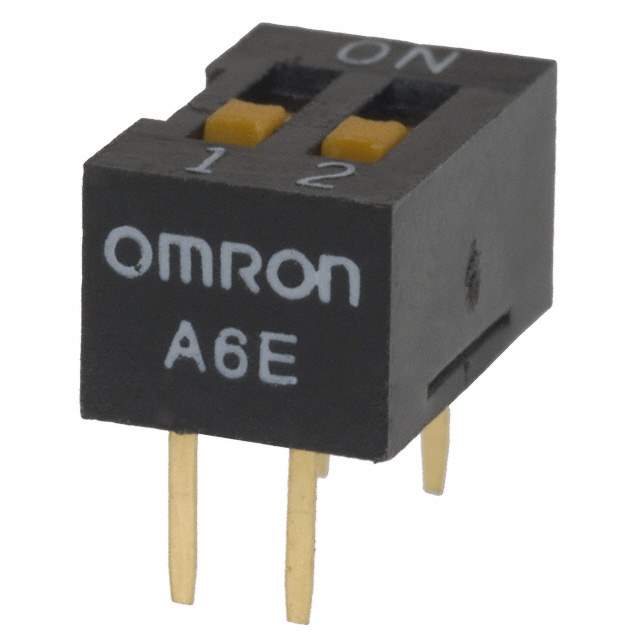

A6E-2101-N Real Image
Same model may have multiple batches, images only for reference.

A6E-2101-N

Part No A6E-2101-N
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6E-N
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.230" (5.85mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 70°C
Length 0.254" (6.44mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number A6E
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names Z5437,A6E2101N,2266-A6E-2101-N
Standard Package 72
Win Source Part Number 1056615-A6E-2101-N
Ultra Librarian 3D Model Ultra Librarian A6E-2101-N CAD Model

Description

The Omron A6E-N is a DIP switch that comes in a tube package with a standard package of 72.

  • Win Source part number: 1056615-A6E-2101-N
  • Positions: 2
  • Pitch: 0.100" (2.54mm), full
  • Termination style: PC pin
  • Circuit: SPST
  • Actuator type: slide (standard)
  • Switch function: off-mom
  • Contact finish: gold
  • Voltage rating: 24VDC
  • ECCN: EAR99
  • HTSUS: 8536.50.9065
  • Current rating: 25mA
  • Mounting: through-hole
  • Temperature range: -20°C to 70°C
