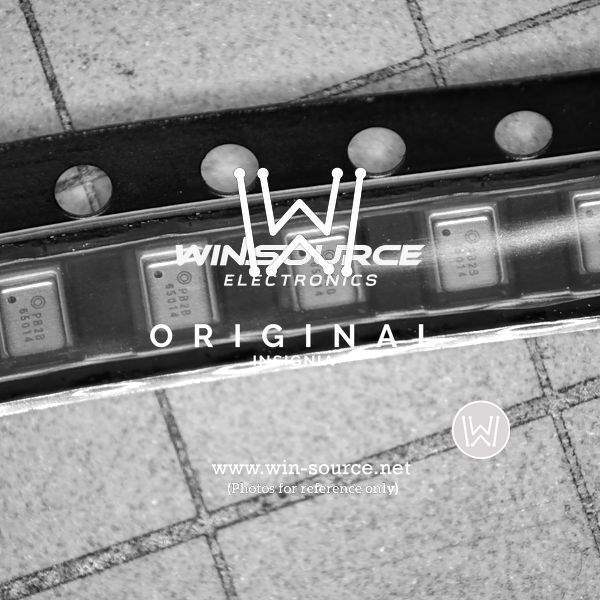

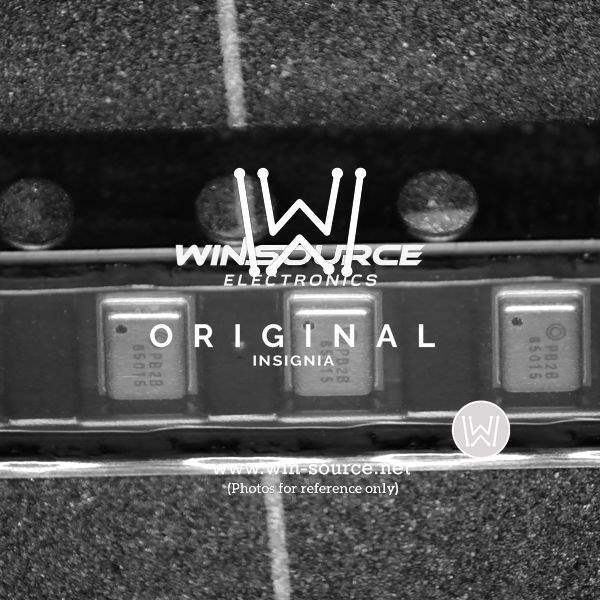

2SMPB-02B Real Image 2SMPB-02B Real Image1 2SMPB-02B Real Image2 2SMPB-02B Real Image3 2SMPB-02B Real Image4
Same model may have multiple batches, images only for reference.
2SMPB-02B Real Image 2SMPB-02B Real Image1 2SMPB-02B Real Image2 2SMPB-02B Real Image3 2SMPB-02B Real Image4
2SMPB-02B Real Image 2SMPB-02B Real Image1 2SMPB-02B Real Image2 2SMPB-02B Real Image3 2SMPB-02B Real Image4
Same model may have multiple batches, images only for reference.

2SMPB-02B

Part No 2SMPB-02B
Manufacturer Omron
Catalog Pressure Sensors, Transducers
Description BAROMETRIC DGTL PRESS SENS 9LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 3 Weeks
Features Pressure Sensor 4.4PSI ~ 16.0PSI (30kPa ~ 110kPa) Absolute - 24 b 9-VLGA
Manufacturer Omron
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Package 9-VLGA
Case / Package 9-LGA (2.5x2)
Family Name 2SMPB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 39-2SMPB-02BDKR, Z8216, 2SMPB02B, Z8216CT-ND, 39-2SMPB-02BTR, Z8216TR-ND, Z8216CT, 39-2SMPB-02BCT, Z8216-ND
Quantity per package 3500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 855454-2SMPB-02B
Ultra Librarian 3D Model Ultra Librarian 2SMPB-02B CAD Model

Description

The Omron 2SMPB pressure sensor is a medium-popularity electronic component and is manufactured by Omron.

  • Temperature range: -40°C to 85°C
  • Pressure range: 4.4PSI to 16.0PSI (30kPa to 110kPa)
  • Pressure type: Absolute
  • Package type: 9-VLGA
  • Package: reel-TR
  • Resolution: 24-bit
  • Family: 2SMPB
  • Supply and demand status: Limited
  • Quantity per package: 3500
  • MSL level: 1 (unlimited)
  • Estimated production lead time: 3 weeks
  • HTSUS: 9026.20.4000
  • Product Status: Active
