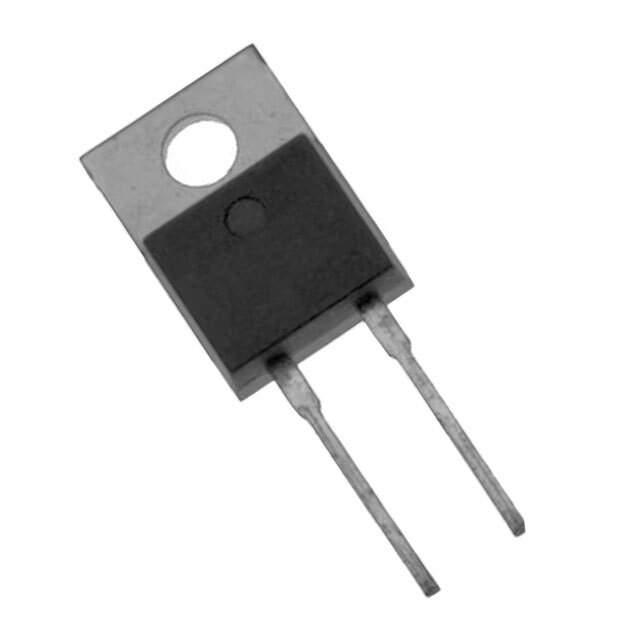

TCH35P2R20JE Real Image
Same model may have multiple batches, images only for reference.

TCH35P2R20JE

Part No TCH35P2R20JE
Manufacturer Ohmite
Catalog Through Hole Resistors
Description 35 Watt TO220 Package Thick Film Power
Datasheet
TCH35P2R20JE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Ohmite
Series TCH
Packaging Bulk
Resistance (Ohms) 2.2
Tolerance ±5%
Power (Watts) 35W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ~ 175°C
Package TO-220-2
Manufacturer Package TO-220
Size 0.400" L x 0.175" W (10.16mm x 4.44mm)
Height - Seated (Maximum) 0.591" (15.00mm)
Number of Terminations 2
Win Source Part Number 1265579-TCH35P2R20JE
Manufacturer Homepage www.ohmite.com
Family Name TCH
ECCN EAR99
Country of Origin Mexico
Halogen Free Unknown
Estimated EOL Date 2026
Popularity Medium
Supply and Demand Status Limited
Quantity per package 48
Ultra Librarian 3D Model Ultra Librarian TCH35P2R20JE CAD Model

Description

The TCH35P2R20JE is a 35W thick film resistor designed for use in TO-220-2 packages.

  • Power: 35W
  • Package: TO-220-2
  • Resistance: 2.2 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Moisture Resistant: Yes
  • Seated Height: 0.591" (15.00mm)
  • Package Type: Bulk
  • Standard Package Quantity: 48 resistors
  • Operating Temperature: -55°C to 175°C
