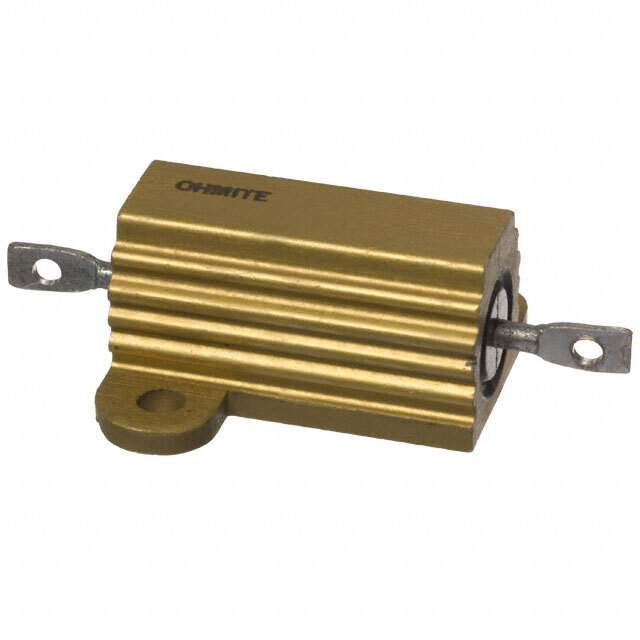

HS507R5F Real Image
Same model may have multiple batches, images only for reference.

HS507R5F

Part No HS507R5F
Manufacturer Ohmite
Catalog OEM Parts (F - I)
Description Res 7.5 Ohm 1% 14/50W ±100ppm/C Aluminum Housed AXL Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Composition Wirewound
Height 14.8082 mm
Housing Material Aluminium
Lead/Base Style Solder
Length 49.0982 mm
Max Power Dissipation 50 W
Power Rating 50 W
Resistance 7.5 Ω
RoHS Compliant
Temperature Coefficient 100 ppm/°C
Tolerance 1 %
Voltage Rating (DC) 1.25 kV
Width 14.1986 mm
Win Source Part Number 1063500-HS507R5F
Categories OEM Parts(F-I)
Manufacturer Ohmite
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian HS507R5F CAD Model

Description

The Ohmite 1063500-HS507R5F resistor is a wirewound resistor with a resistance of 7.5 Ohms and a power rating of 50W manufactured by Ohmite.

  • Resistance: 7.5 Ohms
  • Power Rating: 50W
  • Tolerance: 1%
  • Temperature Coefficient: 100 ppm/°C
  • Package: Solder
  • Housing Material: Aluminum
  • Dimensions: 49.0982 mm x 14.1986 mm x 14.8082 mm
  • RoHS: Compliant
  • Voltage Rating (DC): 1.25 kV
