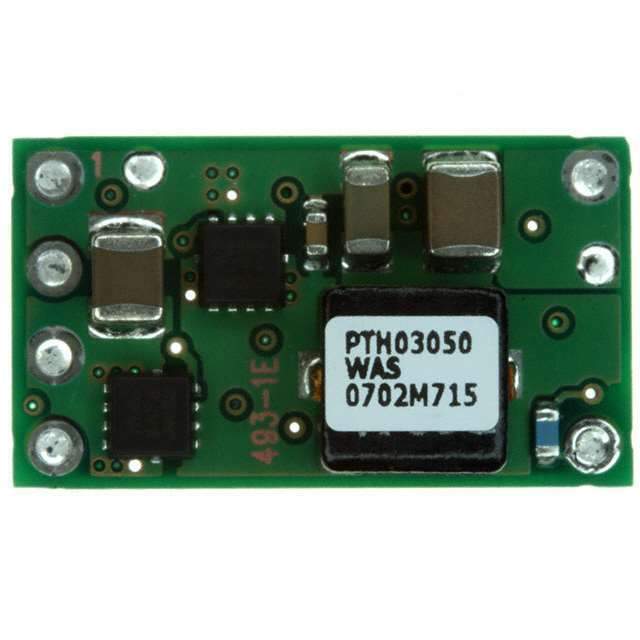

Same model may have multiple batches, images only for reference.

PTH03050WAS

Name: PTH03050WAS
Brand: Texas Instruments
SKU: 283788
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH03050WAS
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-2.5V 6A SMD
Datasheet	PTH03050WAS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH03050W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.95V
Voltage - Input (Max)	3.65V
Voltage - Output 1	0.8 ~ 2.5 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	15W
Win Source Part Number	026936-PTH03050WAS
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH03050WAS CAD Model

Alternative Products

Description

The PTH03050WAS is a high-performance, non-isolated power module from Texas Instruments, a global semiconductor design and manufacturing company.

Rating: 15-A
Adjustable Output Voltage: Can be set from 0.8 V to 3.6 V
Input Voltage Range: 3.0 V to 3.6 V
Efficiency: Up to 96%
Feature: Auto-Track sequencing
Thermal Performance: Excellent, thanks to its innovative packaging technology
Protection Features: Over-temperature and under-voltage lockout protection
Control: On/Off inhibit control
Package: Compact, surface-mount package
