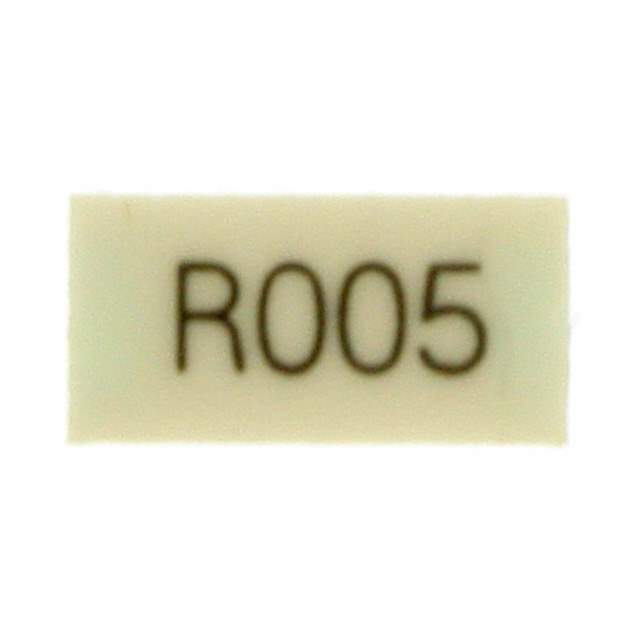

FCSL64R005FER Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Ohmite
Packaging Reel - TR
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Foil
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package Wide 2512 (6432 Metric), 1225
Supplier Device Package 6432
Size / Dimension 0.122" L x 0.248" W (3.10mm x 6.30mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number FCSL64R005FERDKR,FCSL64R005FERCT,FCSL64R005FERTR
Standard Package 1,000
Win Source Part Number 1326064-FCSL64R005FER
Ultra Librarian 3D Model Ultra Librarian FCSL64R005FER CAD Model

Description

The Ohmite FCSL64R005FER is a metal foil chip resistor that is suitable for current sense and moisture-resistant applications.

  • Standard Package: 1,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 2W
  • Size/Dimension: 0.122" L x 0.248" W (3.10mm x 6.30mm)
  • Height - Seated (Max): 0.028" (0.70mm)
  • Number of Terminations: 2
  • Resistance: 5 mOhms
  • Temperature Range: -55°C ~ 155°C
  • Supplier Device Package: 6432
  • ROHS3 Compliant: Yes
