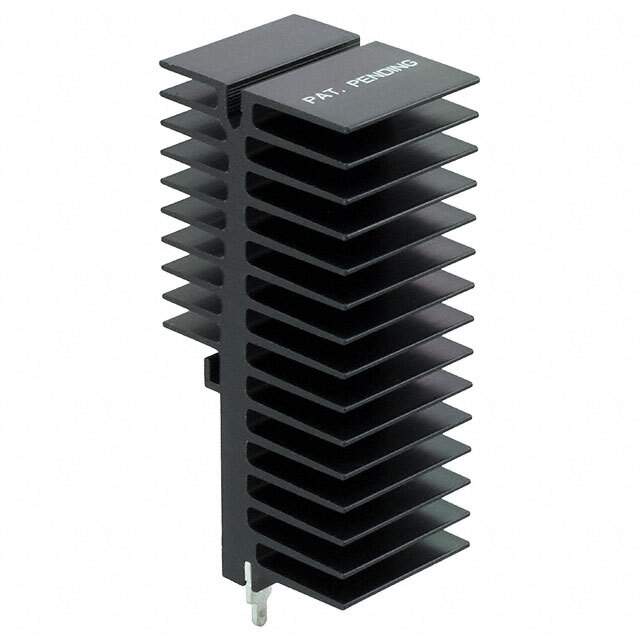

CR201-25AE Real Image
Same model may have multiple batches, images only for reference.

CR201-25AE

Part No CR201-25AE
Manufacturer Ohmite
Catalog Thermal - Heat Sinks
Description ALUMINUM HEATSINK 25MM BLK ANODI / Heat Sink TO-201 Aluminum Alloy Board Level, Vertical
Datasheet
CR201-25AE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Ohmite
Series CR
Package Box
Type Board Level, Vertical
Package Cooled TO-201
Attachment Method 3 Clips and PC Pin
Shape Rectangular, Fins
Length 0.984" (25.00mm)
Width 2.953" (75.00mm)
Thermal Resistance @ Natural 4.70°C/W
Material Aluminum Alloy
Material Finish Black Anodized
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Standard Package 4
Win Source Part Number 1205655-CR201-25AE
Ultra Librarian 3D Model Ultra Librarian CR201-25AE CAD Model

Description

The CR201-25AE is a board level, vertical type heat sink designed for TO-201 package cooling.

  • Package: 4
  • Material: aluminum alloy
  • Shape: rectangular
  • Features: fins
  • Attachment Method: 3 clips and PC Pin
  • Width: 2.953" (75.00mm)
  • Length: 0.984" (25.00mm)
  • Thermal Resistance @ Natural: 4.70°C/W
  • Material Finish: black anodized
  • Suitable For: thermal management applications
