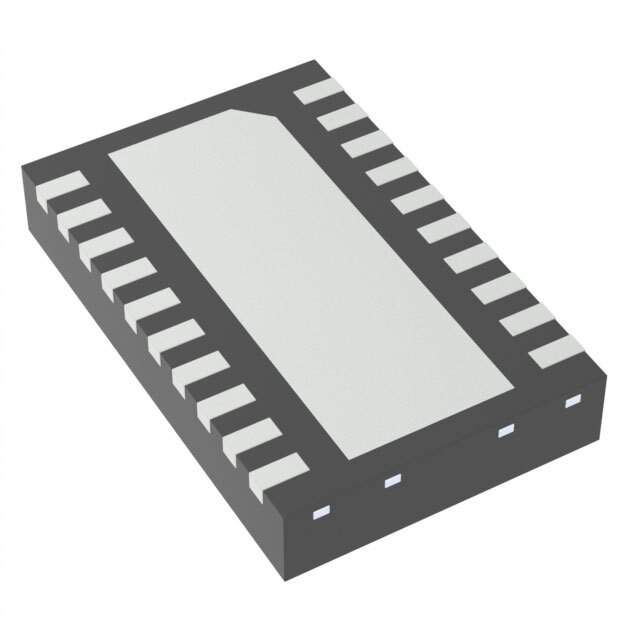

Product Overview: NXP UJA1169TK/3Z System Basis Chip

The NXP UJA1169TK/3Z is a highly integrated system basis chip that offers a robust interface between the network and the microcontroller. Designed to support the CAN-FD (Controller Area Network Flexible Data-rate) protocol, this chip is an excellent choice for automotive and industrial applications requiring high-speed data communication with fault-tolerant capabilities.

The UJA1169TK/3Z integrates several key features that make it a versatile and reliable component for network communication. It includes a CAN-FD transceiver, capable of data rates up to 5 Mbps, ensuring swift and efficient data transfer. The transceiver is designed to be compliant with the ISO 11898-2:2016 standard, making it suitable for use in a wide range of CAN-based systems.

With its integrated voltage regulator, the chip provides a stable power supply for the microcontroller and other peripherals, which is especially important in the fluctuating voltage environment of automotive applications. The power-saving mode and battery-related functions are designed to minimize power consumption when the network is idle, thereby extending the life of the vehicle's battery.

The UJA1169TK/3Z also features advanced fail-safe functions such as a watchdog timer, a window watchdog, and a system monitoring feature, which enhance the safety and reliability of the system it is integrated into. These features ensure the system operates within its expected parameters, providing an additional layer of protection against system failures.

For developers and engineers, the UJA1169TK/3Z offers an array of diagnostic functions. These include bus dominance timeout, thermal protection, and voltage monitoring, which aid in identifying and troubleshooting potential issues in the network. The chip's robust construction is also designed to withstand the harsh conditions typical of automotive environments, including exposure to high temperatures and vibrations.

In summary, the NXP UJA1169TK/3Z system basis chip is a comprehensive solution that combines a CAN-FD transceiver with power management and safety features, making it an indispensable component for reliable and efficient network communication in automotive and industrial systems.
