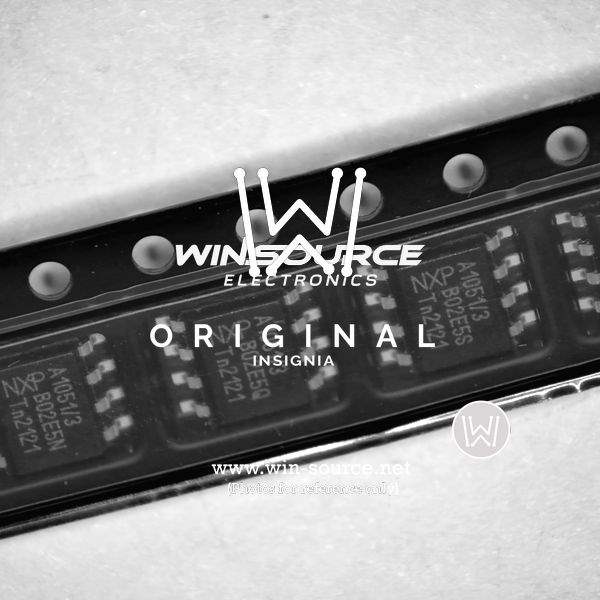

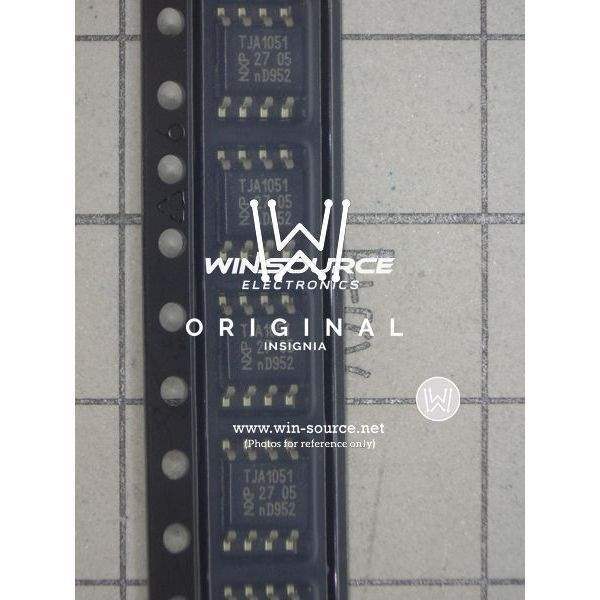

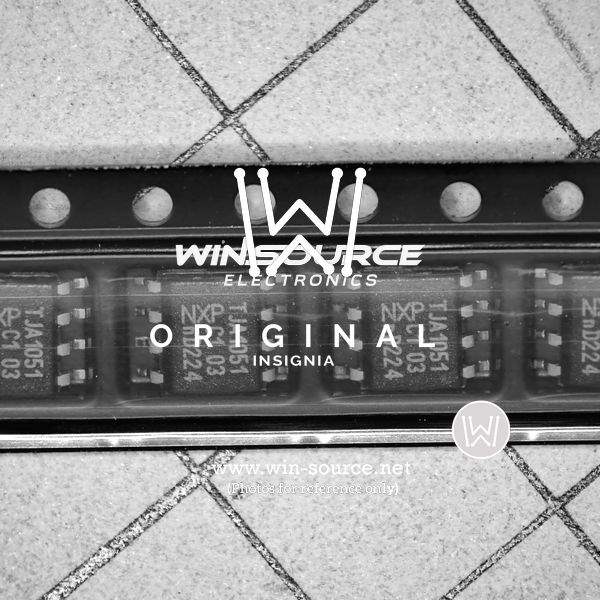

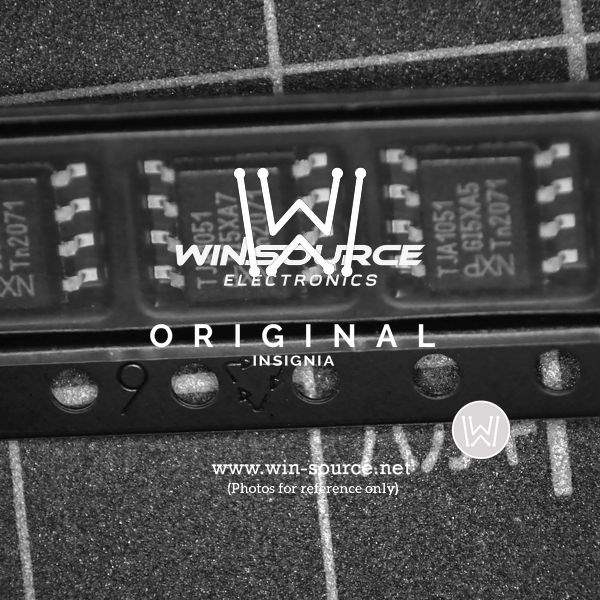

The NXP TJA1051T is a state-of-the-art high-speed Controller Area Network (CAN) transceiver that stands out for its robustness, reliability, and efficiency in facilitating communication within automotive and industrial networks. Designed to operate in harsh environments, the TJA1051T is a critical component for systems that require high-speed data transmission with fault-tolerant capabilities.
Key Features
- High-Speed CAN Interface: Supports ISO 11898-2:2016 and can handle up to 1 Mbit/s, making it suitable for high-performance applications.
- Improved Electromagnetic Compatibility (EMC): Enhanced features to minimize electromagnetic emissions and increase immunity to electromagnetic interference.
- Low Power Mode: Features a very low current Standby mode with bus wake-up capability, ensuring energy efficiency in dormant states.
- Transmit Data (TXD) Dominant Timeout: Prevents bus lines from being driven to a permanent dominant state due to malfunctioning node.
- Thermal Protection: Integrated thermal protection that disables the transmitter in case of excessive temperature rise.
- Bus Pins Protected Against Transients: Offers protection against transients in automotive environments, enhancing the device's robustness.
Applications
The TJA1051T is versatile for a range of applications, particularly in the automotive sector, including:
- On-board diagnostics
- Automotive gateways
- Powertrain applications
- Body control modules
- Advanced driver-assistance systems (ADAS)
It is also suitable for industrial automation systems, where reliable communication is essential for operational efficiency and safety.
Product Specifications
Parameter
Value
Supply Voltage (V<sub>CC)
4.5V - 5.5V
Operating Temperature
-40°C to +150°C
Package
SOIC-8
In summary, the NXP TJA1051T provides an ideal solution for high-speed CAN communication with a focus on performance and durability, ensuring reliable data transmission in critical applications.
