The TJA1029TK/20/1J is a high-performance, automotive-grade LIN (Local Interconnect Network) transceiver designed by NXP Semiconductors. This transceiver is specifically engineered to provide a robust interface between the LIN master/slave protocol controller and the physical bus in a LIN network. It is an essential component for automotive and industrial applications that require reliable communication under harsh conditions.

Key Features

• Compliance: Fully compatible with the LIN 2.0, 2.1, 2.2, 2.2A, and SAE J2602 standards, ensuring a wide range of interoperability with various LIN systems.
• Low Power Mode: Features a very low current sleep mode with a wake-up capability via the LIN bus, making it ideal for battery-operated applications.
• Improved ESD Protection: Equipped with excellent Electrostatic Discharge (ESD) protection, exceeding the automotive requirements of ±8 kV IEC 61000-4-2, which provides resilience against environmental electrical disturbances.

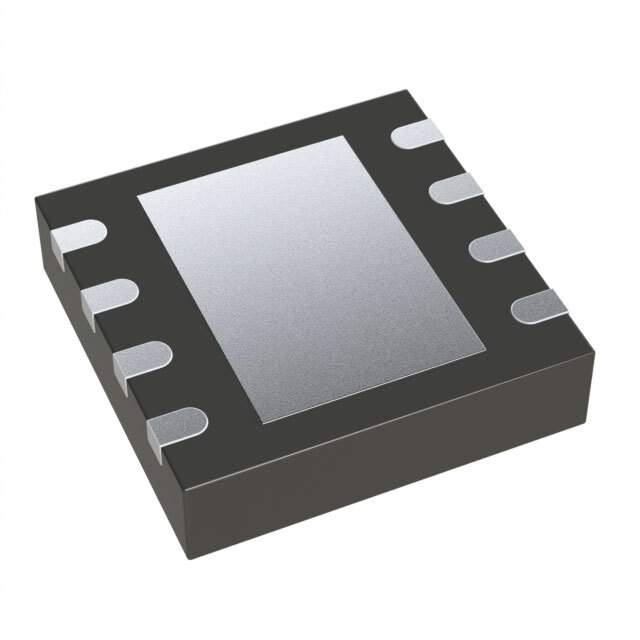

• High Thermal Performance: Enclosed in a small leadless HVSON8 package that delivers enhanced thermal performance and reduced footprint on the PCB.
• Bus Pins Protection: Integrated bus pins are protected against transients in the automotive environment, offering additional reliability and longevity.

Applications

The TJA1029TK/20/1J LIN transceiver is ideal for a variety of applications within the automotive sector, such as body control modules, door modules, seat control, intelligent sensors, and steering wheel interfaces. It is also suitable for industrial automation systems that require a robust serial communication network.

Technical Specifications

• Supply Voltage Range: 5.5 V to 27 V
• Operating Temperature Range: -40°C to +125°C, suitable for harsh environments.
• Data Rate: Up to 20 kBd, accommodating most LIN network speed requirements.

With its advanced features and compliance with industry standards, the TJA1029TK/20/1J from NXP is a reliable choice for designers looking to implement a LIN bus system in automotive or industrial applications.
