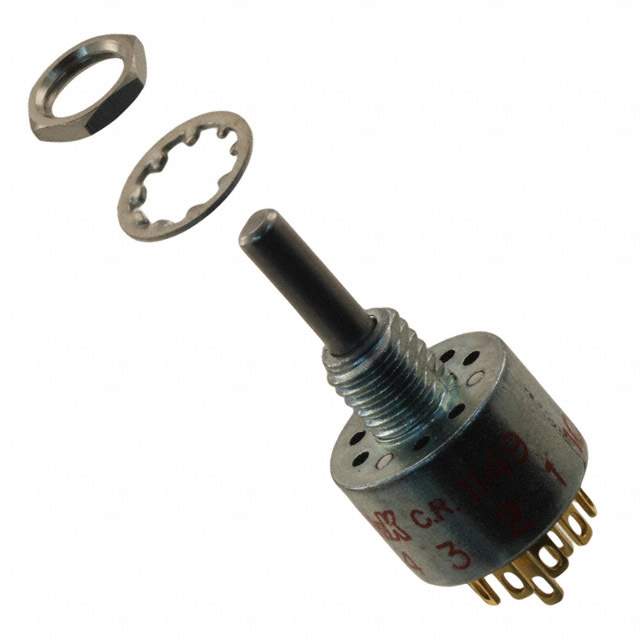

MB03S1NZGD Real Image
Same model may have multiple batches, images only for reference.

MB03S1NZGD

Part No MB03S1NZGD
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 3POS 250MA 125V / Rotary Switch 3 Position DP3T 250mA (AC/DC) 125 VAC Panel Mount
Datasheet
MB03S1NZGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr C&K
Series M
Package Tray
Number of Positions 3
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DP3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 10.16mm
Angle of Throw 36°
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 14.86mm
Panel Cutout Dimensions Circular - 6.60mm Dia
Base Product Number MB03S1N
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9025
Other Names CKN9879,*MB03S1NZGD
Standard Package 80
Win Source Part Number 1075918-MB03S1NZGD
Ultra Librarian 3D Model Ultra Librarian MB03S1NZGD CAD Model

Description

This rotary switch is part of the M series and has 3 positions.

  • Series: M
  • Positions: 3
  • Voltage Rating AC: 125V
  • Voltage Rating DC: 28V
  • Current: 250mA
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Actuator Type: Flatted
  • Actuator Diameter: 3.17mm
  • Actuator Length: 10.16mm
  • Poles Per Deck: 2
  • Circuit Per Deck: DP3T
  • Angle of Throw: 36°
  • Depth Behind Panel: 14.86mm
  • Mounting: Panel Mount
  • Packaging: Tray
  • Popularity: Medium
  • Fake Threat: 79%
  • Supply and Demand: Balanced
