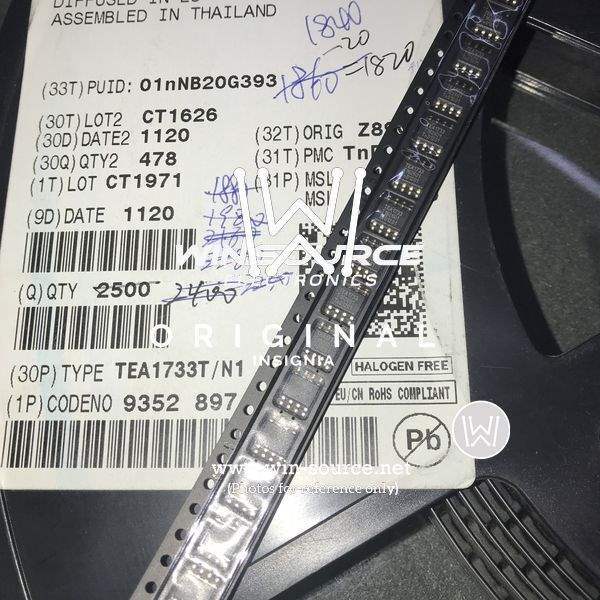

Introducing the TEA1733T/N1 GreenChip SMPS Control IC

The TEA1733T/N1 is a highly integrated circuit manufactured by NXP Semiconductors, designed to efficiently control switch mode power supplies (SMPS) within a compact form factor. This innovative component is part of the GreenChip series, reflecting NXP's commitment to energy efficiency and environmental sustainability. The TEA1733T/N1 is particularly well-suited for low-power applications, offering a cost-effective and power-efficient solution for a wide range of electronic devices.

Key Features

• Low Standby Power: The TEA1733T/N1 excels in minimizing power consumption, especially in standby mode, thereby reducing the overall energy footprint of the application it is used in.
• High Level of Integration: With several features built into the chip, including a high-voltage startup, X-capacitor discharge, and DCM operation, it simplifies the design and reduces external component count.
• Frequency Modulation: To mitigate electromagnetic interference (EMI), the TEA1733T/N1 incorporates frequency modulation, spreading the energy associated with switching over a broader spectrum.
• Protection Features: It includes various protection mechanisms such as overvoltage protection (OVP), overload protection (OLP), and short-circuit protection (SCP) to enhance the safety and reliability of the power supply.

Applications

The versatility of the TEA1733T/N1 makes it an excellent choice for a diverse array of applications. It is particularly effective in:

• Adapter and charger circuits for mobile devices
• Standby and auxiliary power supplies in PCs, TVs, and home entertainment systems
• LED lighting systems

Technical Specifications

The TEA1733T/N1 operates over a wide supply voltage range and is capable of driving a large variety of power MOSFETs. With its adjustable overcurrent protection threshold and the ability to operate in either peak current mode or green mode, it offers designers the flexibility to optimize their power supply for the specific needs of their application.

By integrating the TEA1733T/N1 into your power supply design, you can achieve not only a reduction in energy consumption but also a simplification of the design process, thanks to its comprehensive feature set. This GreenChip IC is an essential component for any designer looking to create an efficient, reliable, and eco-friendly power solution.
