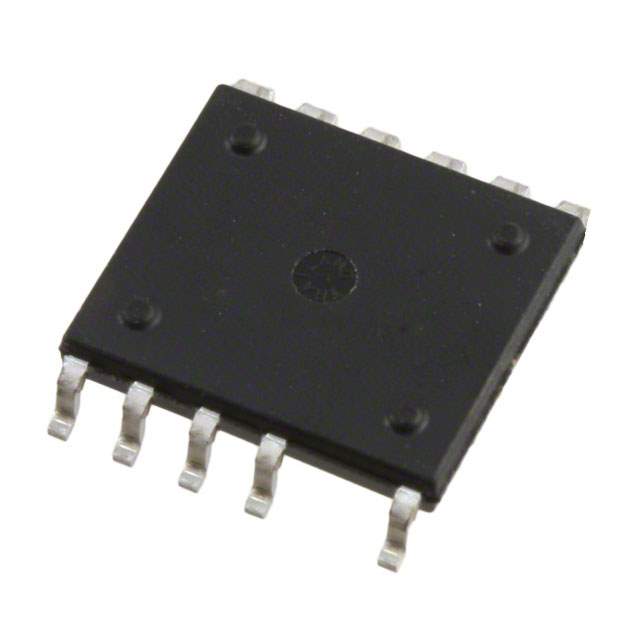

LNK6774K-TL Real Image
Same model may have multiple batches, images only for reference.

LNK6774K-TL

Part No LNK6774K-TL
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWITCH FLYBACK 12ESOP / Converter Offline Flyback Topology 120kHz ~ 136kHz 12-ESOP
Datasheet
LNK6774K-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - AC DC Converters, Offline Switchers
Mfr Power Integrations
Series LinkSwitch™-HP
Package Tape & Reel
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 64%
Frequency - Switching 120kHz ~ 136kHz
Power (Watts) 39 W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Temperature Range - Operating -40°C ~ 150°C (TJ)
Package / Case 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package 12-ESOP
Mounting SMD (SMT)
Base Product Number LNK6774
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names LNK6774K-TL-ND,596-1604-6,596-1604-1,596-1604-2
Standard Package 1,000
Win Source Part Number 1111343-LNK6774K-TL
Ultra Librarian 3D Model Ultra Librarian LNK6774K-TL CAD Model

Description

The LNK6774K-TL from Power Integrations is a high-performance offline switcher IC that belongs to the LinkSwitch™-HP series.

  • Package: 12-BESOP
  • Leads: 11
  • Exposed Pad: yes
  • Output Isolation: yes
  • Internal Switch: yes
  • Topology: flyback
  • Voltage Breakdown: 725V
  • Duty Cycle: 64%
  • Operating Temperature: -40°C to 150°C
  • Fault Protection: current limiting, over load, over temperature, over voltage, and short circuit protection
  • Power: up to 39W
