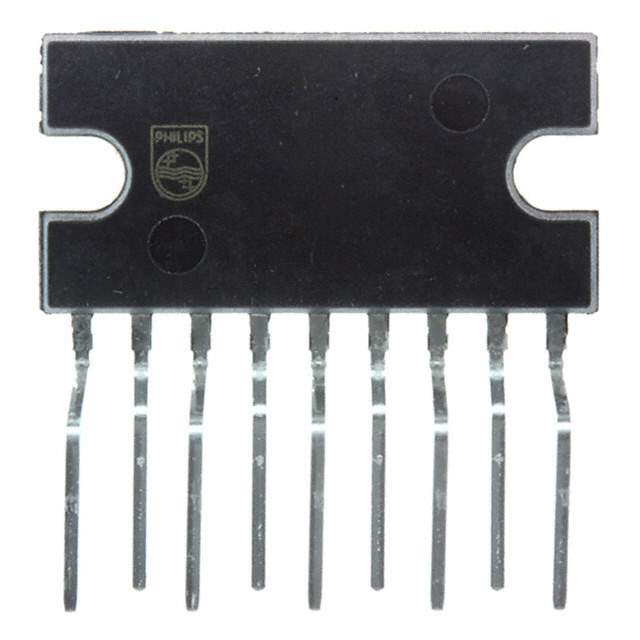

The TDA2616Q is a high-fidelity audio power amplifier integrated circuit brought to you by NXP Semiconductors. This robust IC is designed to deliver a remarkable audio experience, making it an ideal choice for a wide range of applications in the audio domain.
Key Features
- Output Power: The TDA2616Q is capable of delivering up to 2 x 12 W of continuous output power into a 4Ω load, with a power supply of ±14.4V, making it powerful enough for most mid-range audio applications.
- High-Quality Sound: With its low harmonic distortion and low noise levels, the TDA2616Q ensures high-quality sound reproduction, suitable for audiophiles and casual listeners alike.
- Thermal Protection: The device comes with built-in thermal protection, which prevents damage to the IC from overheating, ensuring long-term reliability and safety.
- Short Circuit Protection: The TDA2616Q is also equipped with short-circuit protection that safeguards the amplifier and the speakers from potential damage due to output short circuits.
- Mute Function: A mute function is included, allowing users to silence the output instantly without switching off the amplifier, providing additional convenience and control.
Applications
The versatility of the TDA2616Q makes it suitable for a variety of audio applications including, but not limited to:
- Home audio systems
- Television sets
- Mini and micro component systems
- Active speakers
- DIY audio projects
Technical Specifications
Parameter
Value
Supply Voltage
±14.4V
Output Power
2 x 12 W (4Ω)
THD
0.05% (1 kHz, 8Ω)
Signal-to-Noise Ratio
> 100 dB
Package
9-lead SIL plastic power package
With its impressive combination of audio performance, protection features, and versatility, the TDA2616Q from NXP Semiconductors stands out as a reliable and efficient solution for your audio amplification needs.
