Same model may have multiple batches, images only for reference.

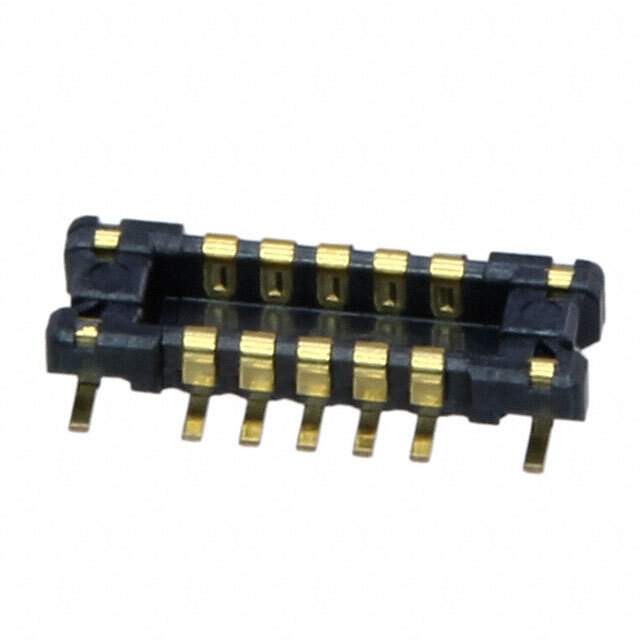

AXE210124A Real Image
Same model may have multiple batches, images only for reference.

AXE210124A

Part No AXE210124A
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER 10PIN .4MM SMD
Datasheet
AXE210124A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Cut Strip
Status Obsolete(EOL)
Connector Type Header, Outer Shroud Contacts
Number of Positions 10
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020899-AXE210124A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXE210124A CAD Model

Description

The Panasonic Electric Works AXE210124A is a 10-position header connector with outer shroud contacts.

  • Positions: 10
  • Contact Feature: Outer Shroud
  • Pitch: 0.016" (0.40mm)
  • Contact Finish: Gold
  • Supplier Package: Cut Strip
  • Height Above Board: 0.026" (0.65mm)
  • Mounting Type: SMD (SMT)
  • Lifecycle Status: Obsolete (EOL)
  • Popularity: Medium
