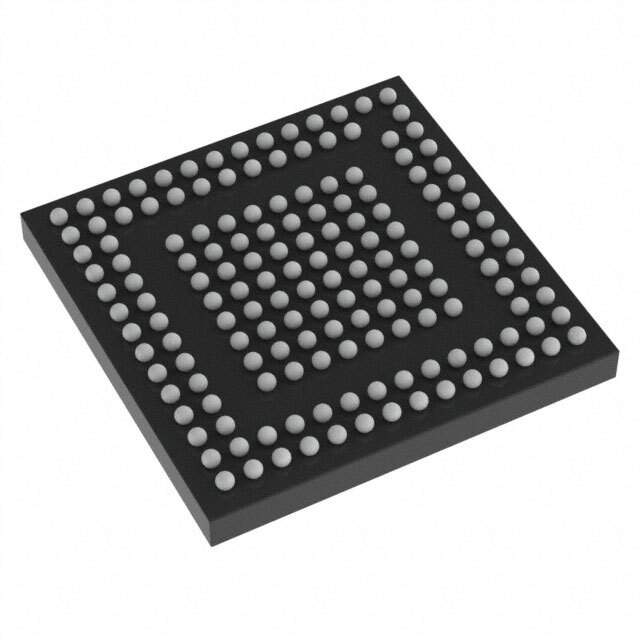

Product Overview: NXP SJA1105RELY Automotive Ethernet Switch

The NXP SJA1105RELY is a versatile automotive Ethernet switch designed to support the increasing demand for networking capacity in modern vehicles. This high-performance component is part of NXP's SJA1105x family, tailored to facilitate the design and implementation of advanced in-vehicle networks. With its robust feature set, the SJA1105RELY is an ideal solution for automotive applications requiring high-speed data transfer, security, and reliability.

Key Features

• Five Ports: The switch includes five fully integrated Ethernet transceivers, each capable of 100/1000 Mbps, which provide flexible connectivity options for various in-vehicle systems.
• Quality of Service (QoS): Advanced QoS features ensure prioritization of critical traffic, such as control messages and real-time data, maintaining optimal performance and reliability.
• Security: Integrated security features, including MACsec (Media Access Control Security), protect against intrusion and unauthorized data access on the network.
• Time-Sensitive Networking (TSN): TSN capabilities enable precise timing and synchronization across the network, essential for applications requiring determinism and low latency.
• Low Power Consumption: The device is designed for energy efficiency, making it suitable for power-sensitive automotive environments.

Applications

The SJA1105RELY switch is engineered to meet the rigorous demands of the automotive industry. It is well-suited for a wide range of applications, such as Advanced Driver Assistance Systems (ADAS), infotainment, telematics, and gateways that require robust data communication. Its ability to handle large bandwidths makes it an excellent choice for backbone networks within the vehicle.

Technical Specifications

• Supply Voltage: 3.3V
• Operating Temperature: -40°C to +125°C
• Package: TQFP144
• Compliance: AEC-Q100 qualified for automotive applications

The NXP SJA1105RELY automotive Ethernet switch is a critical component for the next generation of connected vehicles, providing the speed, security, and reliability needed for seamless in-vehicle communication.
