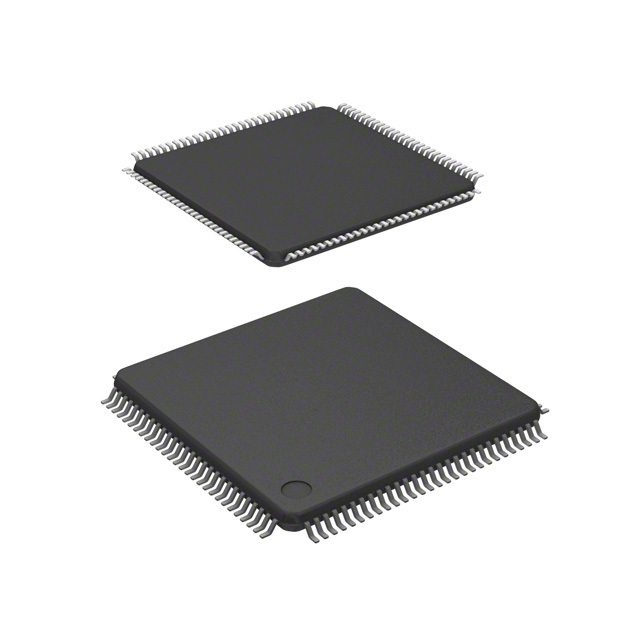

The NXP S9S12XS256J0MALR microcontroller is a highly integrated and versatile component designed for automotive and industrial applications requiring a robust and reliable microcontroller unit (MCU). As part of the S12XS product family, this microcontroller combines the efficiency of a 16-bit CPU with the flexibility of a wide range of peripheral modules, making it an ideal choice for complex control systems.

Key Features

• High-Performance HCS12X CPU: At the heart of the S9S12XS256J0MALR is the HCS12X CPU, which operates at frequencies up to 80 MHz. This CPU core is designed to execute instructions efficiently, providing high computational performance for demanding applications.
• Memory: The MCU comes with 256KB of flash memory and 12KB of RAM, ensuring ample space for application code and data storage. The flash memory is partitioned into blocks that can be independently erased and programmed, offering flexibility for software updates and data management.
• Advanced Peripherals: The S9S12XS256J0MALR includes a range of peripherals such as multiple serial communication interfaces (SCI, SPI, CAN), an 8-channel 12-bit analog-to-digital converter (ADC), and a 6-channel timer module. These peripherals support a wide variety of functions, from sensor data acquisition to motor control and network communication.
• Robust Design: Designed with automotive applications in mind, this MCU features a -40°C to +125°C operating temperature range, low power consumption modes, and a 5V supply voltage, which makes it resilient in harsh environments and suitable for safety-critical systems.
• Development Support: NXP offers a comprehensive suite of development tools for the S9S12XS256J0MALR, including software libraries, development boards, and integrated development environments (IDEs). This support accelerates the development process and helps engineers to bring their products to market faster.

Applications

The S9S12XS256J0MALR MCU is well-suited for a variety of applications, particularly in the automotive sector, such as engine control units, body control modules, and advanced driver-assistance systems (ADAS). It is also applicable in industrial automation, medical devices, and any system that requires a reliable microcontroller for real-time control and processing.
