Product Overview: PEMH11,315 by NXP Semiconductors

The PEMH11,315 is a high-performance, dual NPN/PNP resistor-equipped transistor (RET) family component manufactured by NXP Semiconductors, a leader in the semiconductor industry. This product is designed to simplify circuit design and minimize component count in a variety of applications, making it an ideal choice for space-constrained applications.

Key Features

• Transistor Type: The PEMH11,315 integrates two transistors in one package, one NPN and one PNP, providing flexibility and efficiency in design.
• Integrated Resistors: Equipped with built-in bias resistors, this component reduces the need for external components, which simplifies PCB layout and reduces the overall system cost.

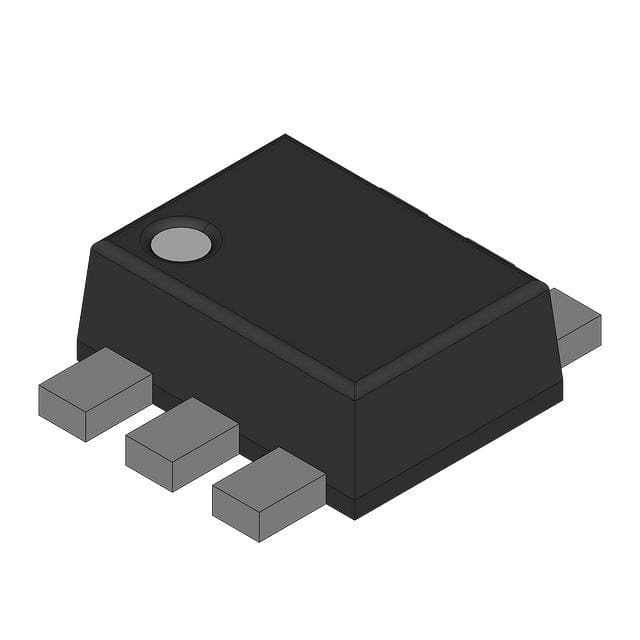

• Package: Housed in a small 6-pin SOT363 (SC-88) surface-mount package, the PEMH11,315 is optimized for automated assembly processes and is suitable for high-density mounting.
• Power Management: With its low current consumption and high efficiency, it is well-suited for power management functions in portable and battery-operated devices.
• Versatility: It is commonly used in applications such as switching circuits, inverter circuits, interface circuits, driver circuits, and other logic-level translation applications.

Applications

The versatility of the PEMH11,315 makes it suitable for a wide range of applications. It is often found in:

• Mobile phones
• Portable devices
• Power management modules
• Signal processing circuits
• Consumer electronics

Technical Specifications

The technical specifications of the PEMH11,315 include a collector-emitter voltage of 50V for the NPN transistor and -50V for the PNP transistor, collector current of 100mA, and power dissipation of 250mW. The built-in resistors feature a ratio that is optimized for low voltage operation, which is particularly beneficial in portable applications.

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality and reliable components. The PEMH11,315 is manufactured using state-of-the-art processes that ensure consistent performance and longevity, making it a reliable choice for both commercial and industrial applications.
